Heads Up Display Unit: Service and Repair

Head Up Display (HUD) Module









Removal and Installation

1. Remove the instrument panel upper section. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

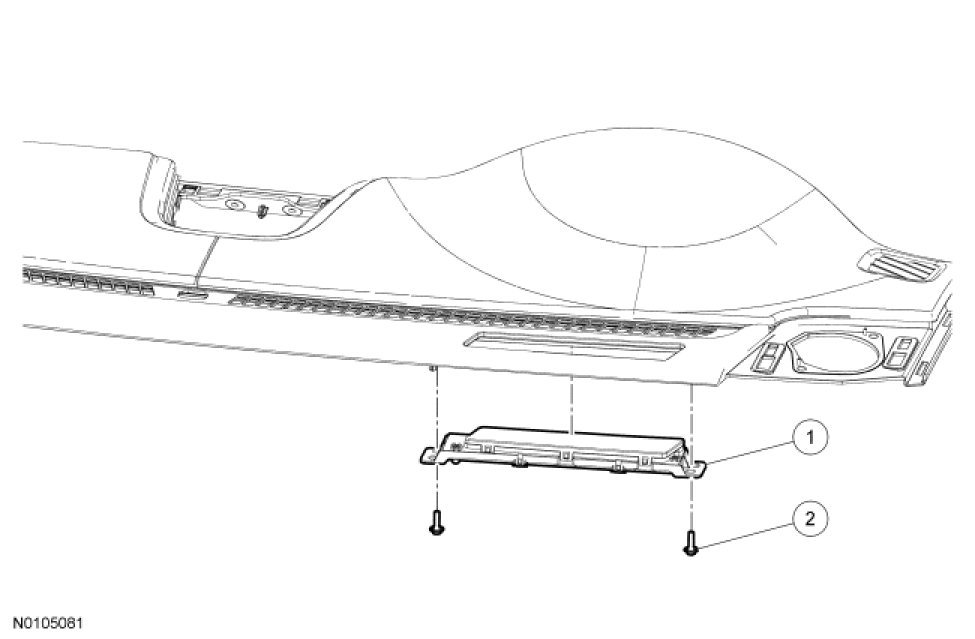

2. Remove the 2 bolts and Head Up Display (HUD) module the from the instrument panel upper section.

3. To install, reverse the removal procedure.
