Camshaft Journal To Bearing Clearance - OHC Engines

Camshaft Journal to Bearing Clearance - OHC Engines

NOTE: Refer to the appropriate Engine for the specification.

1. NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.

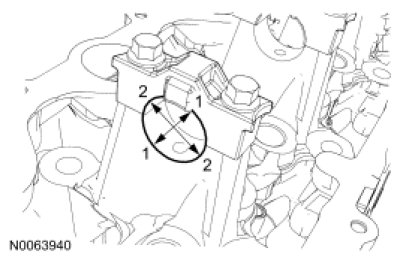

Measure each camshaft bearing in 2 directions.

- Subtract the camshaft journal diameter from the camshaft bearing diameter.
