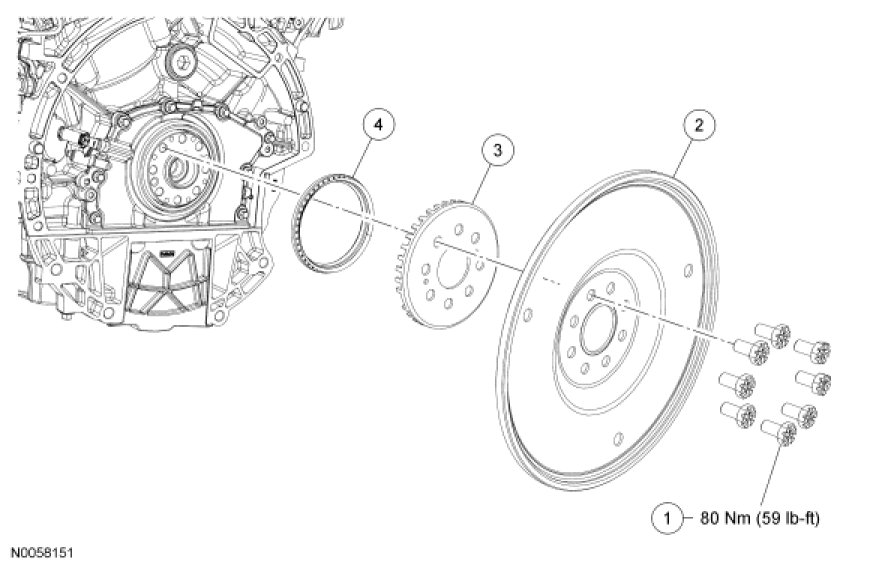

Flexplate And Crankshaft Rear Seal - Exploded View




Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal
