Home >> Lincoln >> 2010 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 93 (Reversing Lamps)

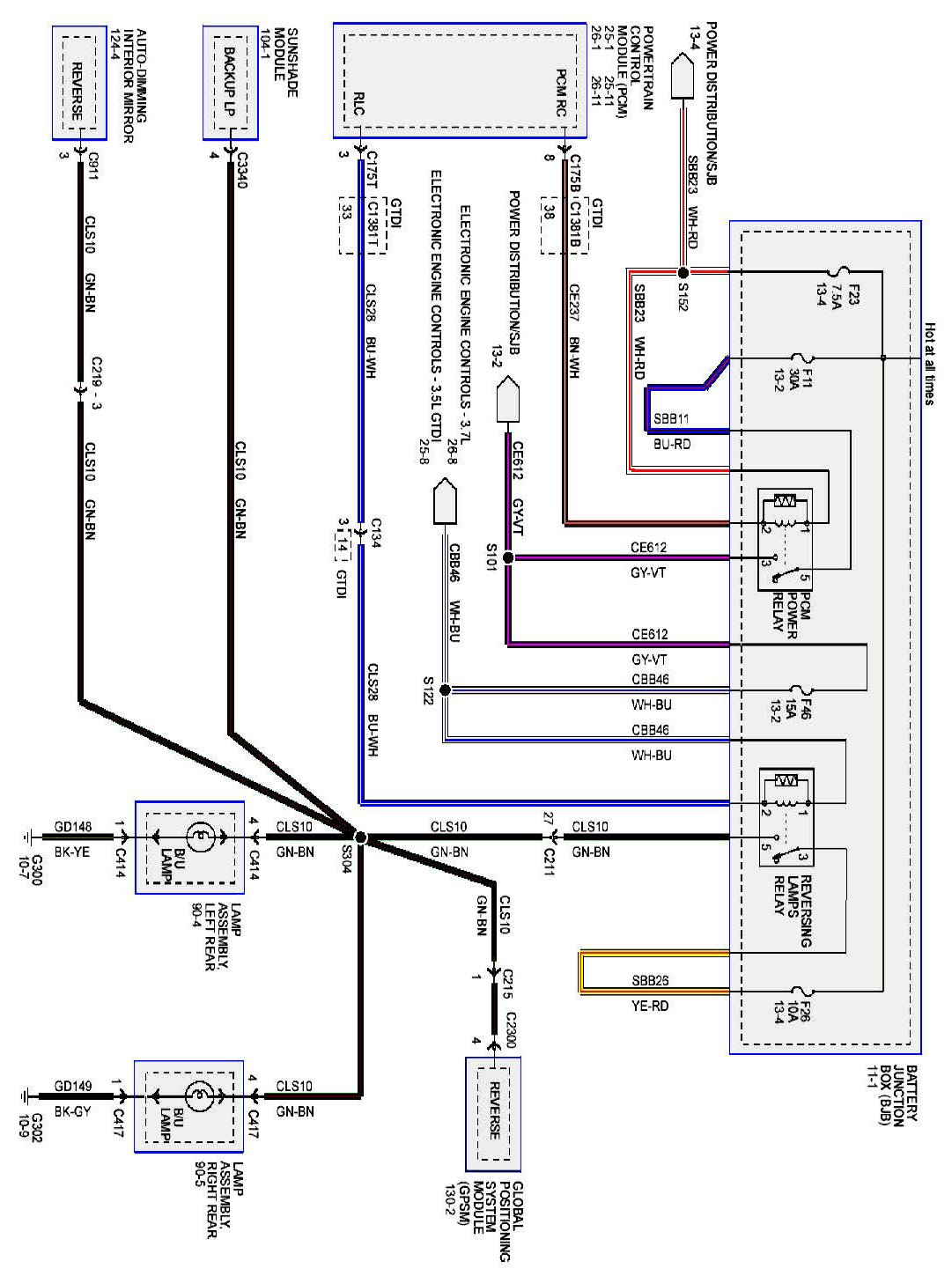

Diagram Set 93 (Reversing Lamps)

93-1:
