Home >> Lincoln >> 2010 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 85 (Headlamps/Autolamps)

Diagram Set 85 (Headlamps/Autolamps)

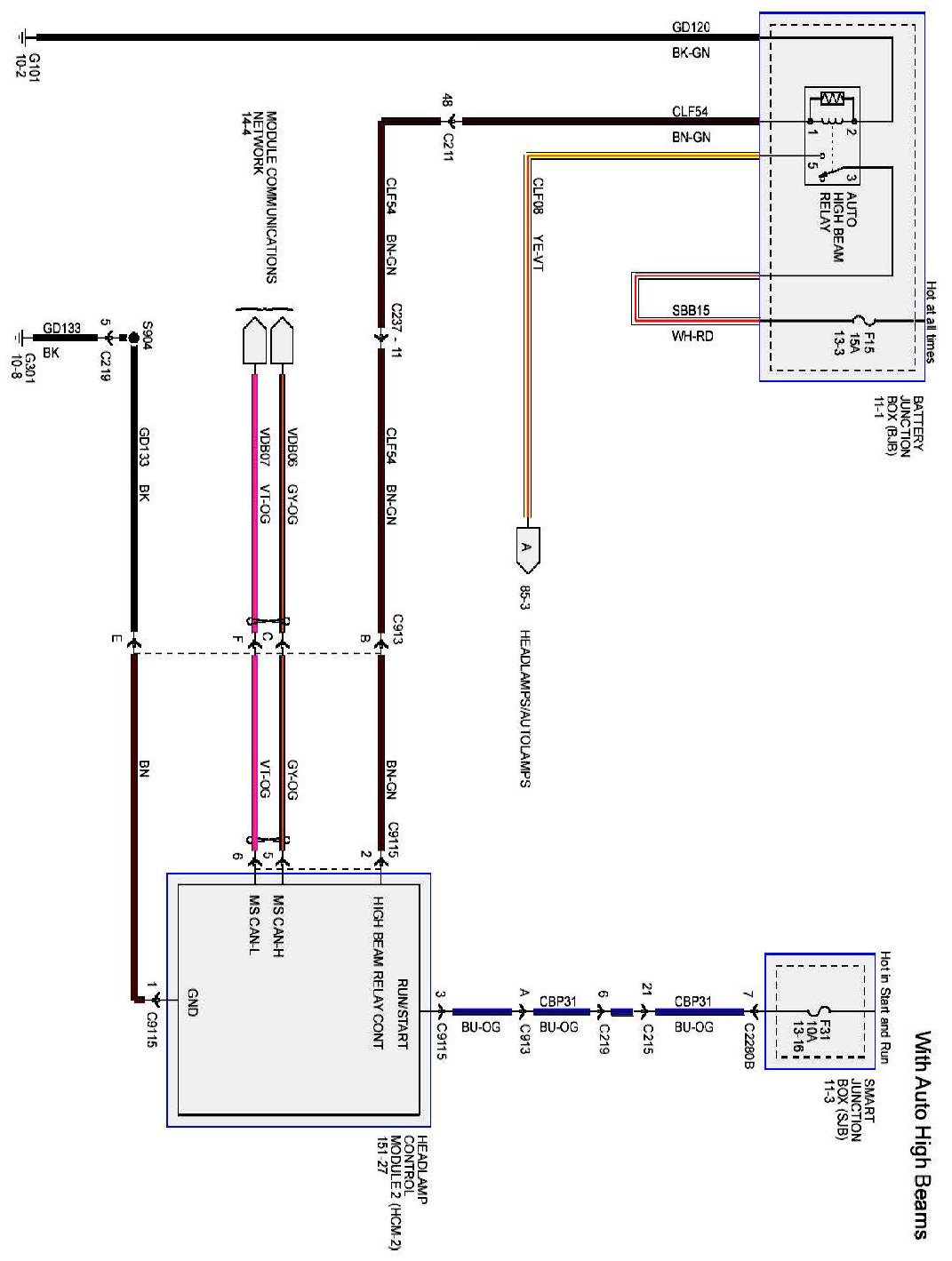

85-1:

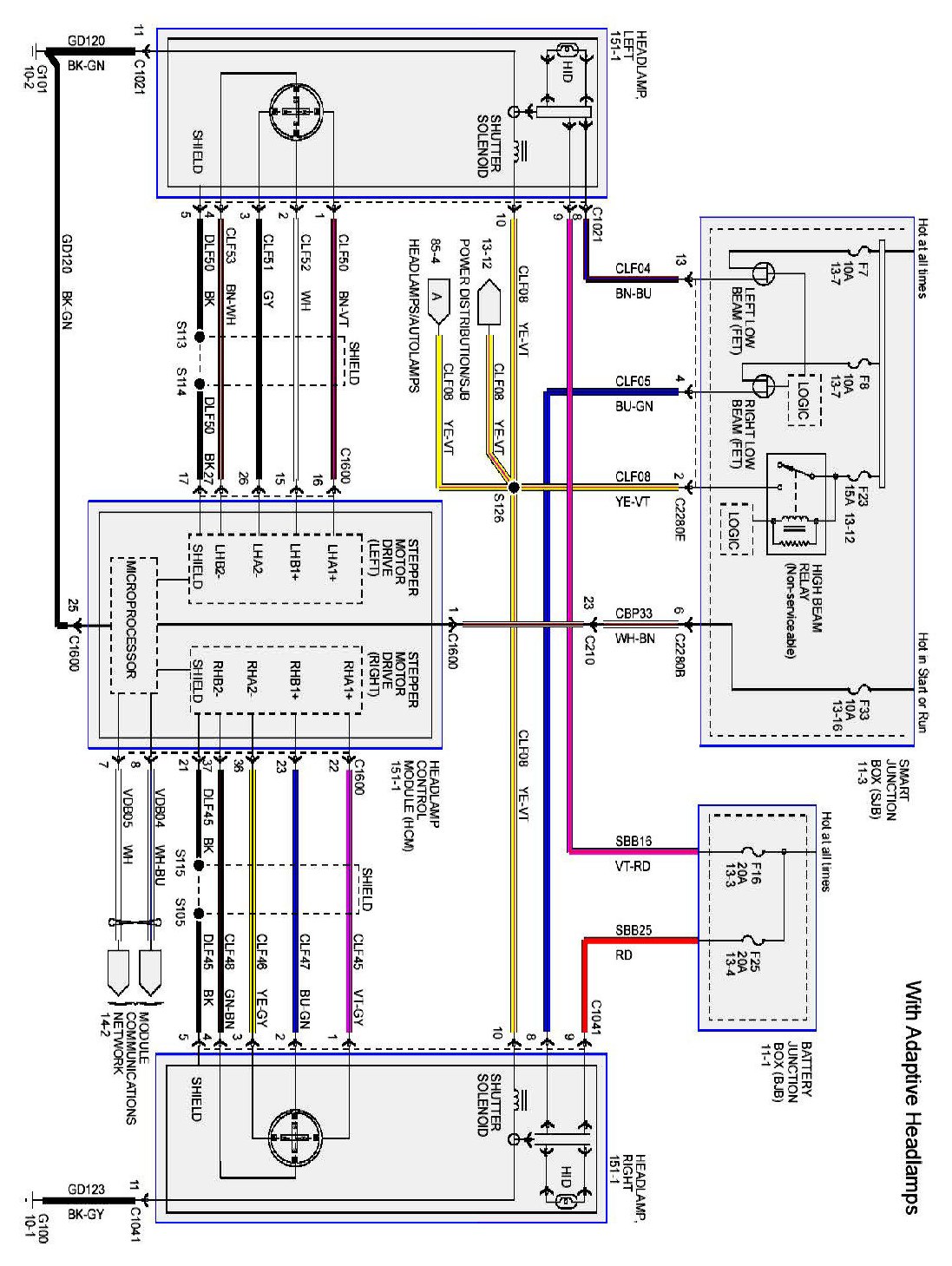

85-2:

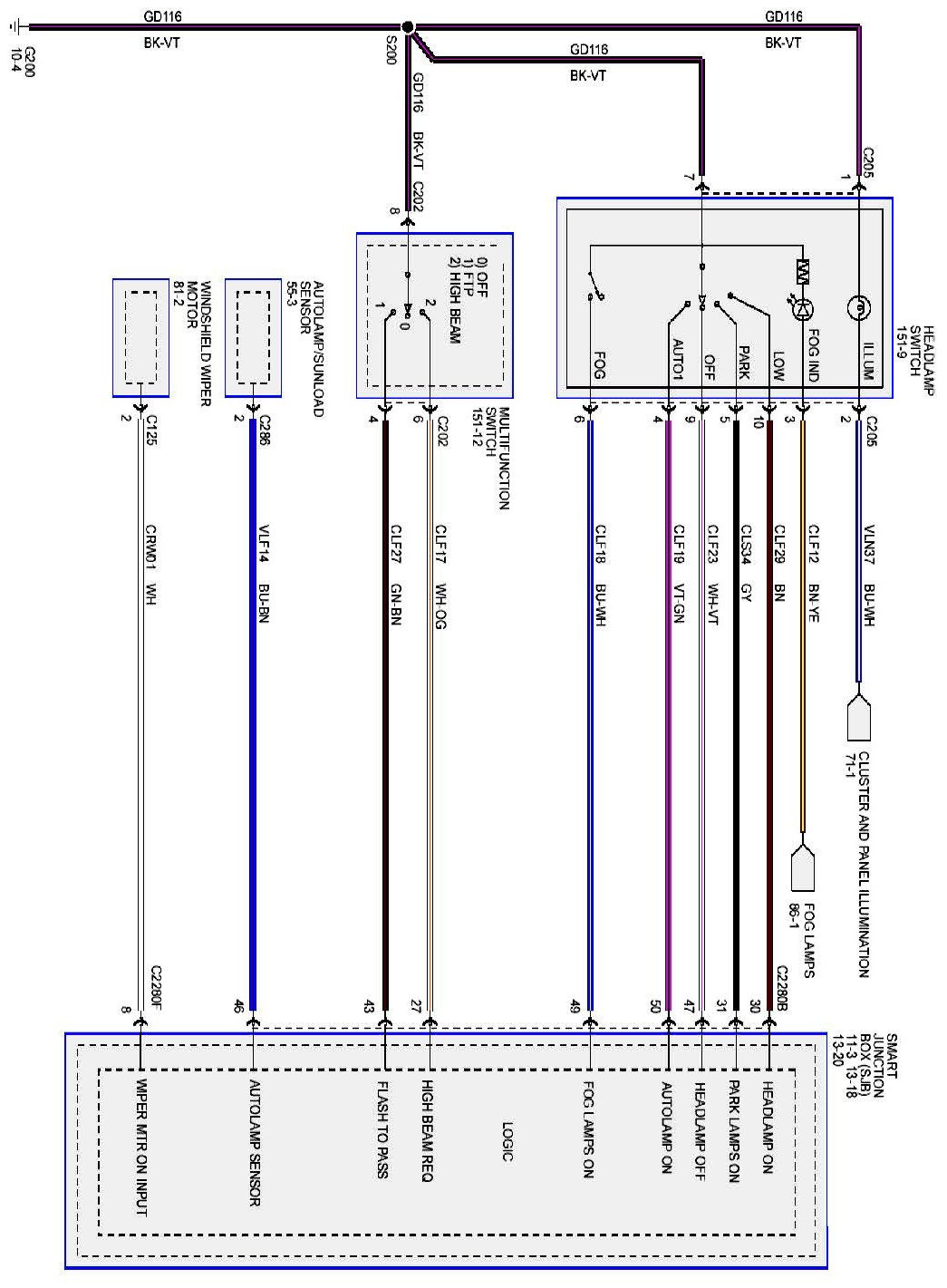

85-3:

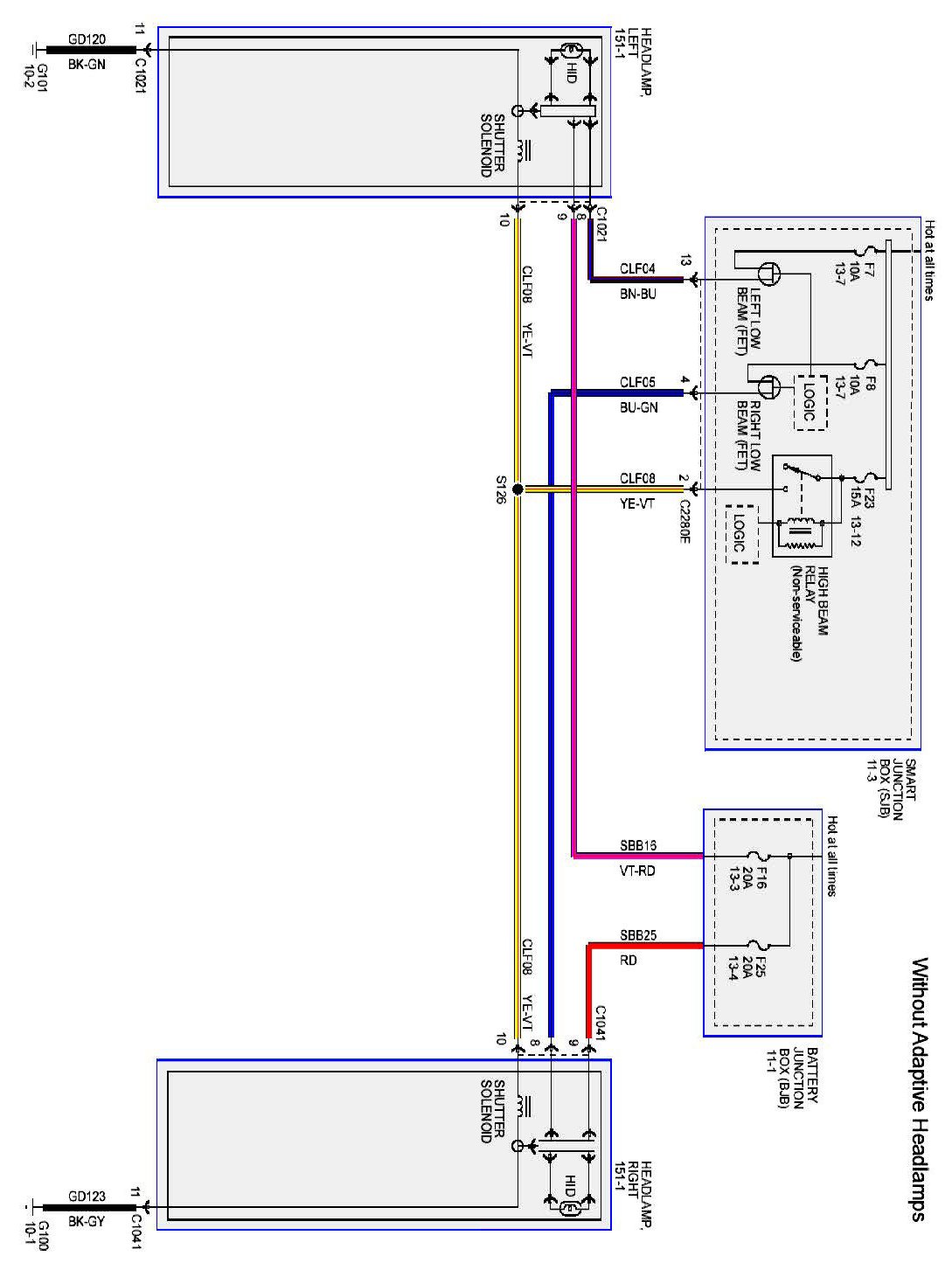

85-4:
