Home >> Lincoln >> 2010 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 71 (Cluster and Panel Illumination)

Diagram Set 71 (Cluster and Panel Illumination)

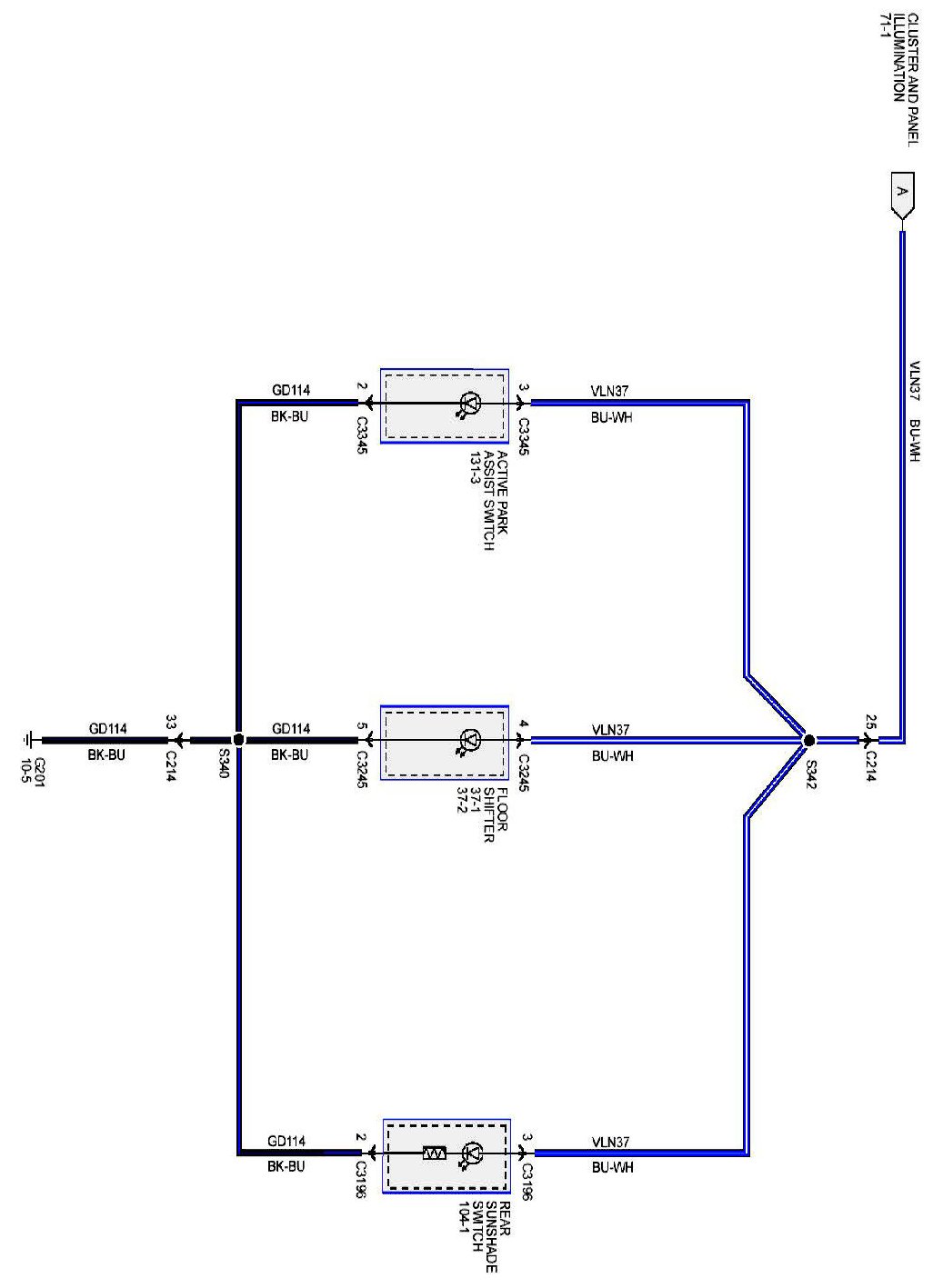

71-1:

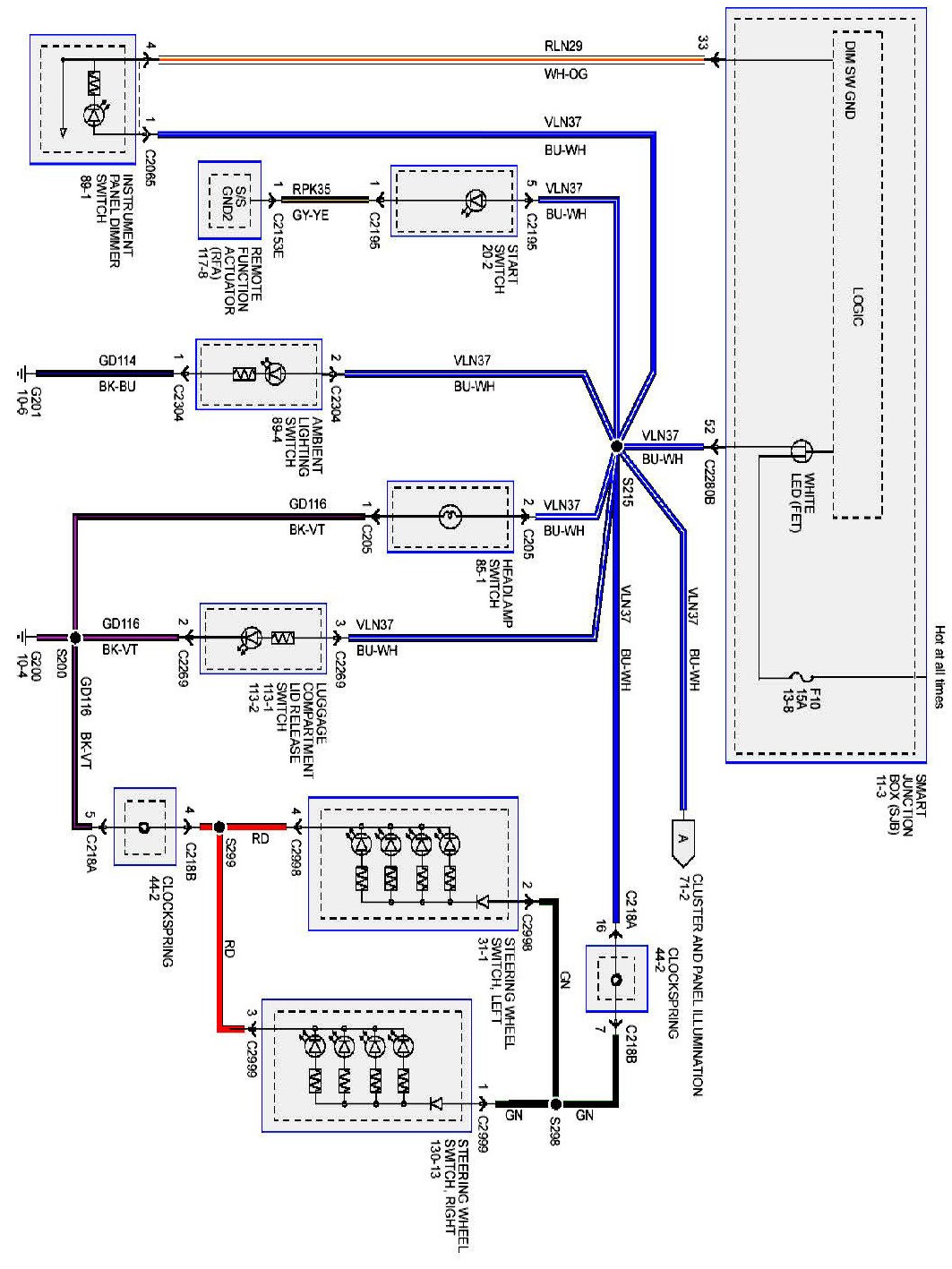

71-2:
