Home >> Lincoln >> 2010 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 34 (All Wheel Drive (AWD))

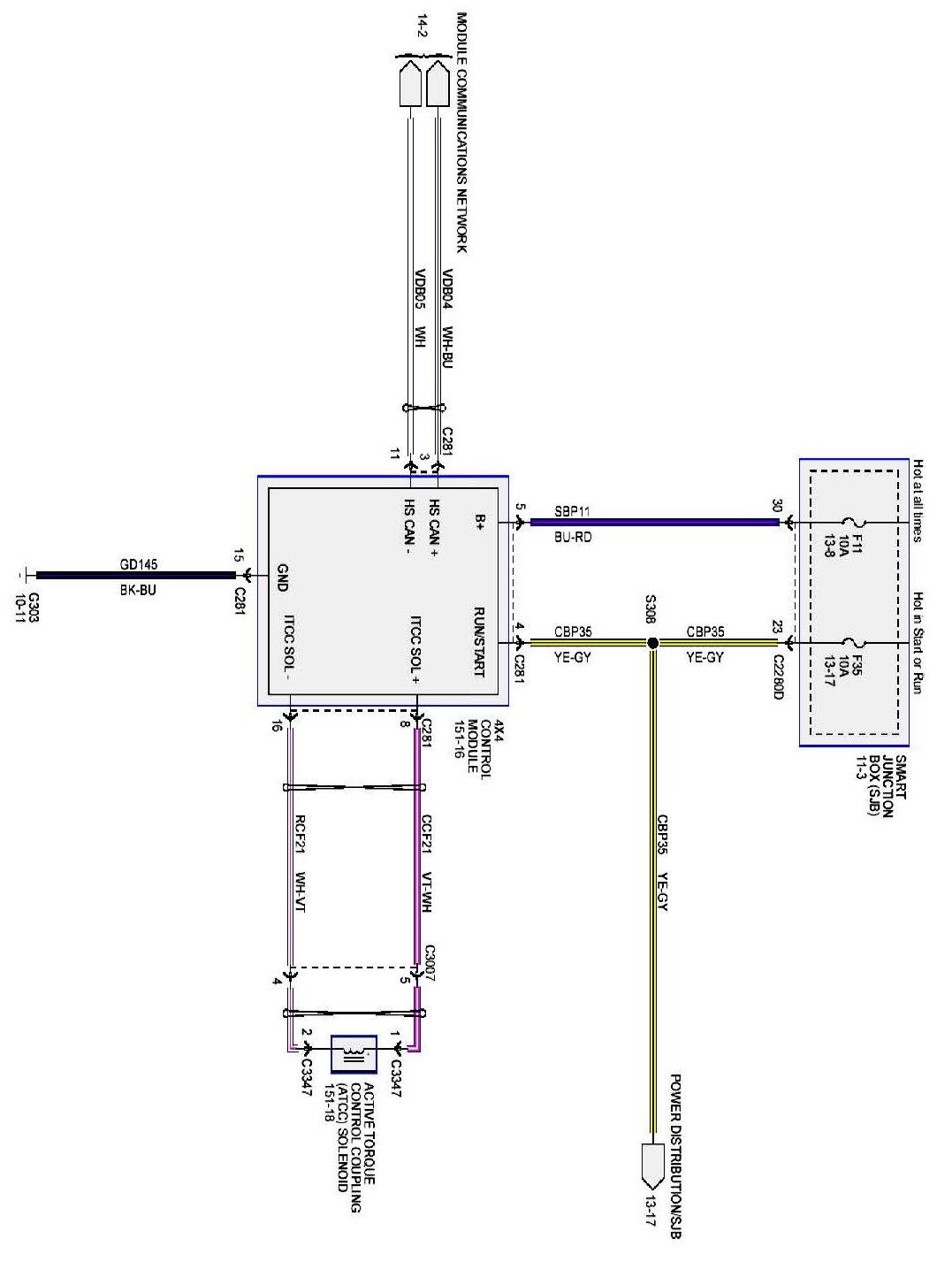

Diagram Set 34 (All Wheel Drive (AWD))

34-1:
