Home >> Lincoln >> 2010 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Door Actuator / Motor, HVAC >> Temperature Blend Door Actuator, Passenger

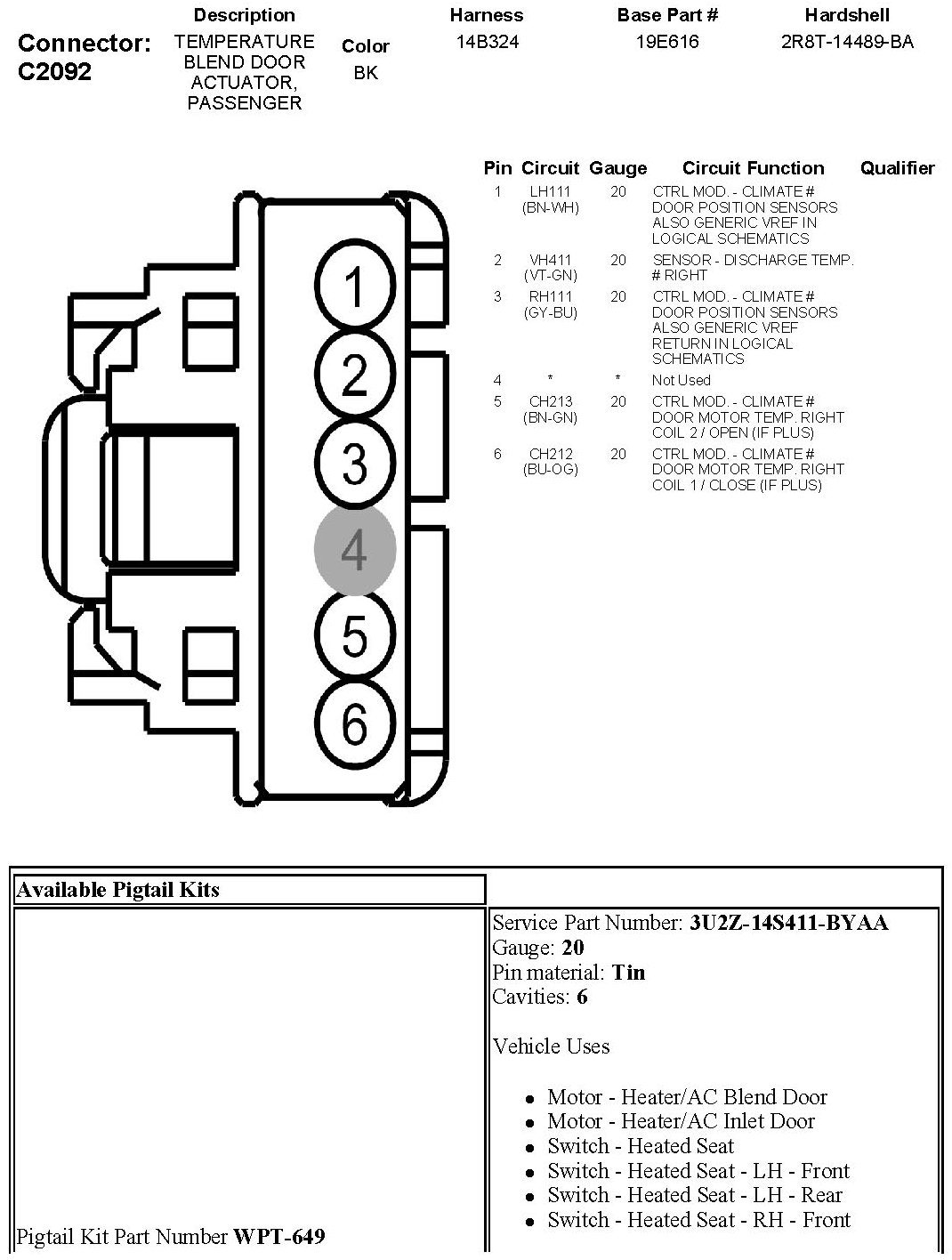

Temperature Blend Door Actuator, Passenger
