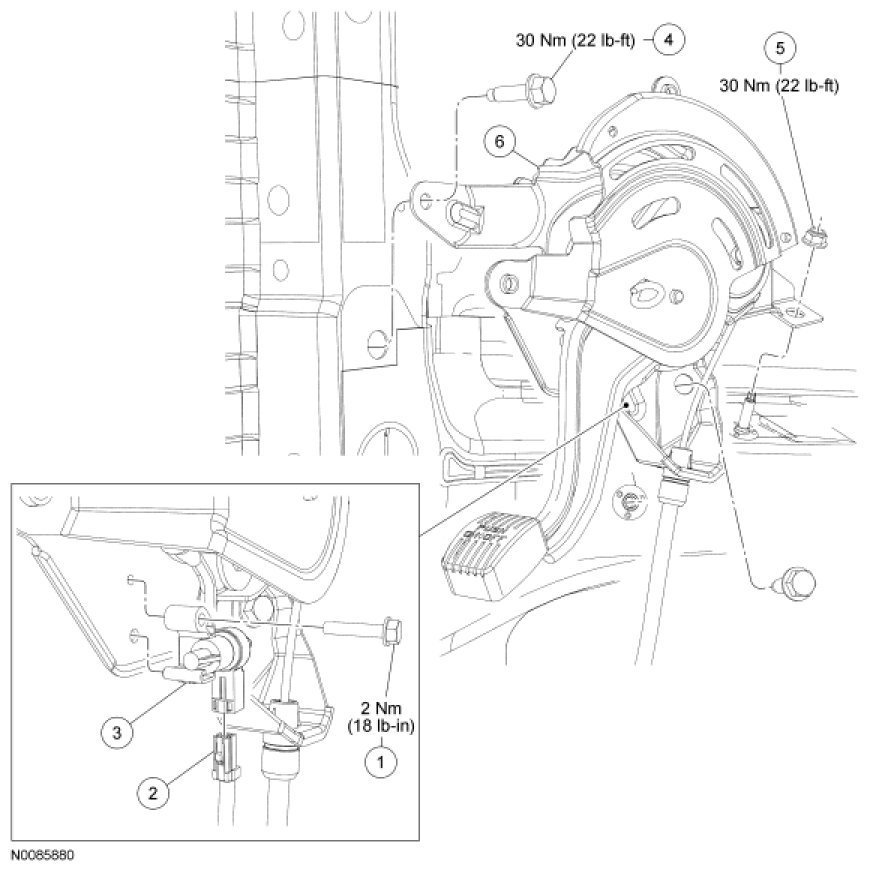

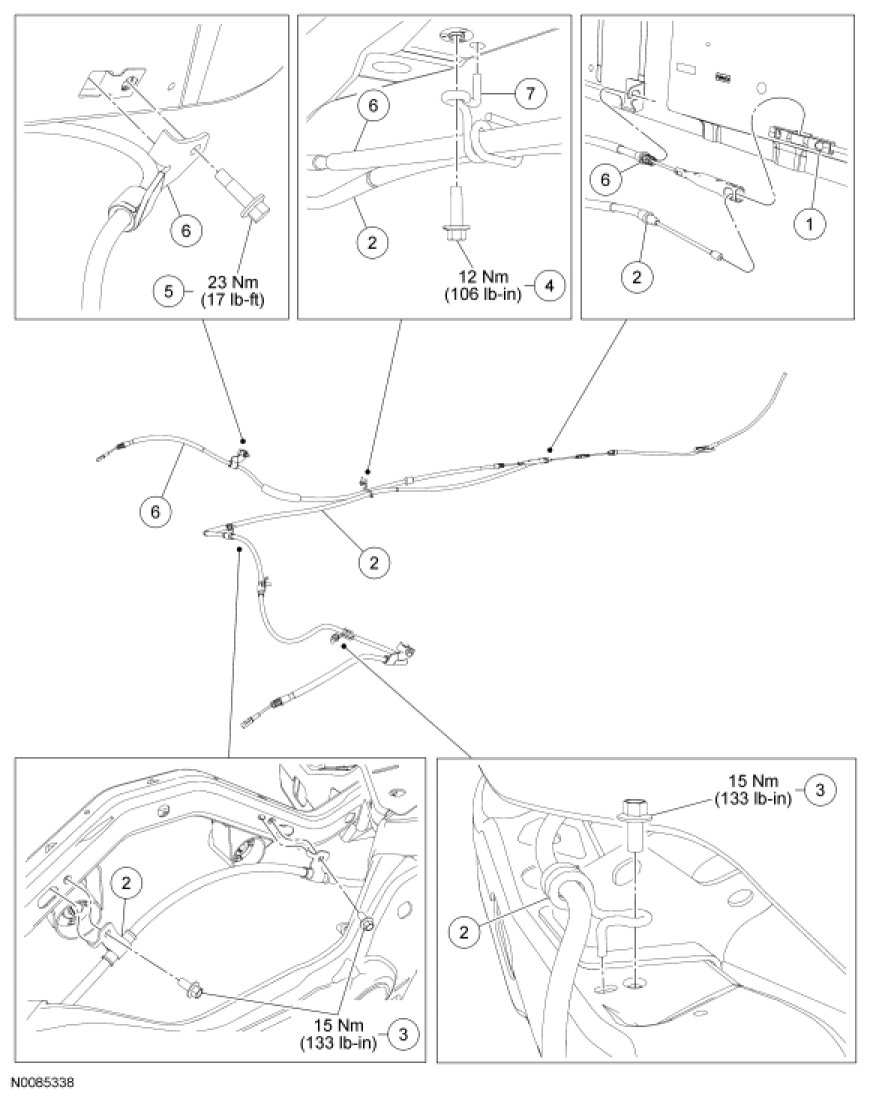

Home >> Lincoln >> 2010 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Parking Brake Cable >> Service and Repair >> Removal and Replacement >> Parking Brake - Exploded View
