Console - Overhead

Console - Overhead

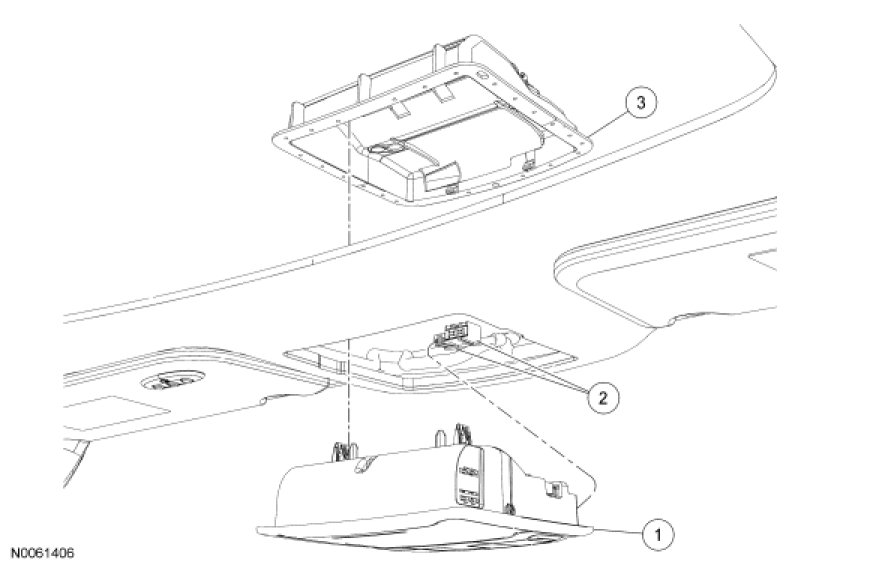

NOTE: Overhead console with roof opening panel is shown, overhead console without roof opening panel is similar.











Removal and Installation

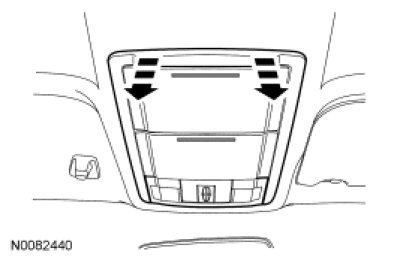

1. Pull the rear of the overhead console downward to release the retaining clips.





2. Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
