Parking Assist Switch: Service and Repair

Active Park Assist Switch

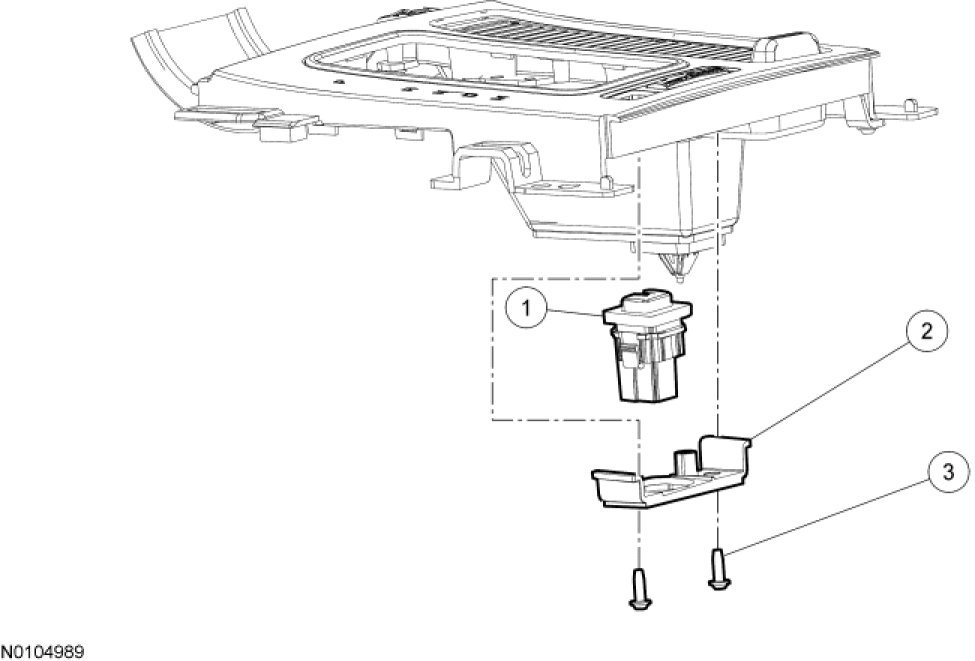

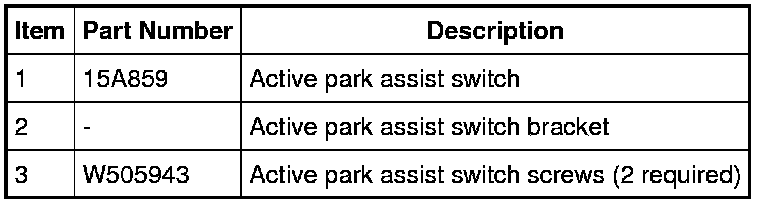

Removal and Installation

1. Remove the selector level trim panel. For additional information, refer to Console - Floor in Instrument Cluster / Carrier &/or Interior Moulding / Trim.

2. Disconnect the electrical connector.

3. Remove the 2 screws.
- Remove the active park assist bracket and switch from the selector level trim panel.

4. To install, reverse the removal procedure.
