Active Park Assist Sensor

Active Park Assist Sensor

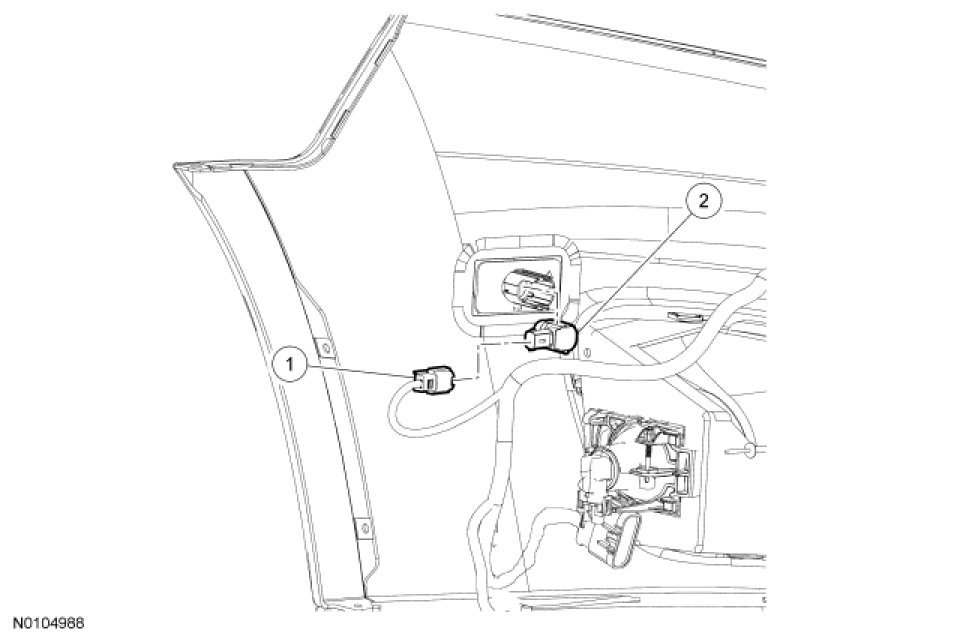

NOTE: Left side shown, right side similar.











Removal and Installation

1. Remove the front lower air deflector. For additional information, refer to Bumper - Exploded View, Front in Bumper.

2. Disconnect the electrical connector.

3. With a suitable tool (such as a flat-blade screwdriver), gently pry the retaining tabs to remove the active park assist sensor(s).
- Remove the active park assist sensor(s) from the front bumper cover.

4. To install, reverse the removal procedure.

5. After installing the sensor(s), use the scan tool to verify that the active park assist sensor PIDs responding correctly. Carry out the Azimuth System Check Active Park Assist. If the parking aid sensor does not respond correctly, refer to Active Park Assist Testing and Inspection in the Diagnosis and Testing.
