Speaker - A-Pillar




Speaker - A-Pillar

NOTE: LH shown, RH similar.











Removal and Installation

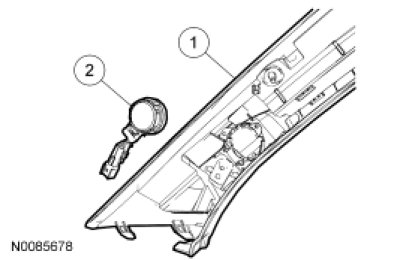

1. Remove the A-pillar trim panel.

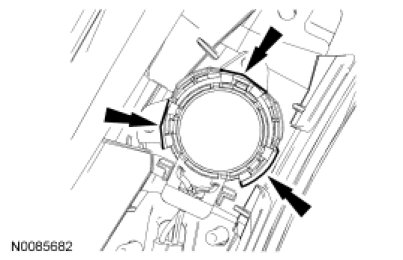

2. Release the clips and remove the A-pillar speaker.





3. To install, reverse the removal procedure.
