Subwoofer Amplifier

Subwoofer Amplifier

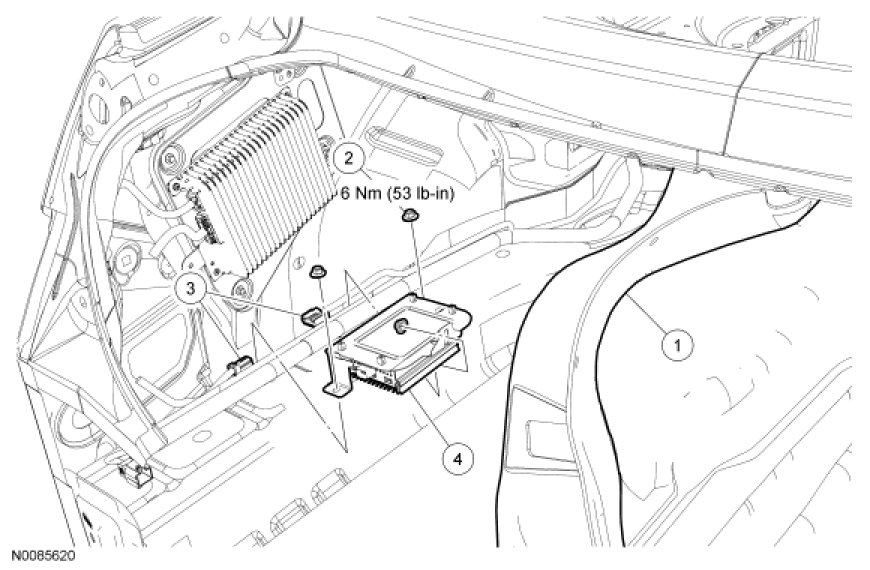

Removal and Installation

1. Remove the pushpins and the LH luggage compartment trim panel.

2. Disconnect the subwoofer amplifier electrical connectors.

3. Remove the 3 nuts and the subwoofer amplifier.
- To install, tighten to 6 Nm (53 lb-in).

4. To install, reverse the removal procedure.
