Audio Amplifier

Audio Amplifier

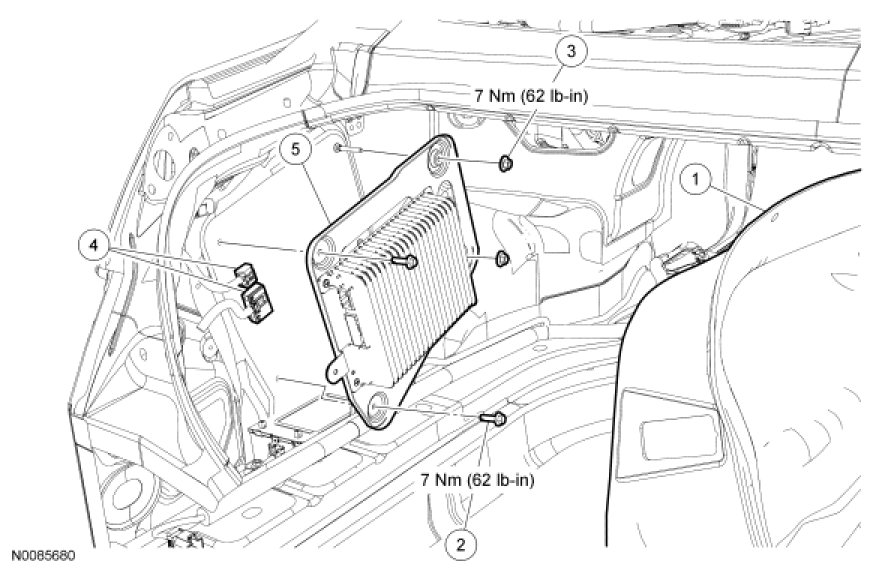

Removal and Installation

1. Remove the pushpins and pull back the LH luggage compartment trim panel.

2. Disconnect the audio amplifier electrical connectors.

3. Remove the 2 bolts, the 2 nuts, and the audio amplifier.
- To install, tighten to 7 Nm (62 lb-in).

4. To install, reverse the removal procedure.
