Anti-Theft - Intelligent Access (IA) DTC Charts

Anti-Theft - Intelligent Access (IA)

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start to review the procedures for achieving the various ignition states (ignition in accessory, ignition on, ignition start, ignition off).

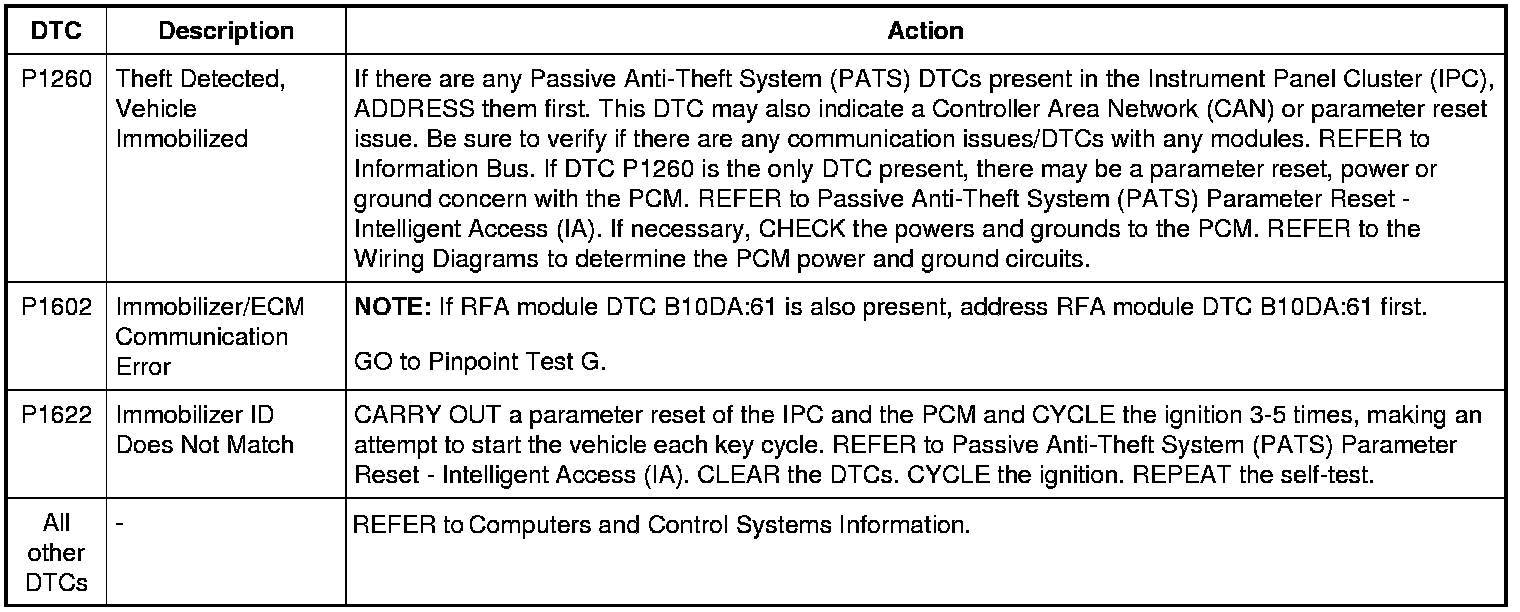

PCM DTC Chart
