Antilock Brakes / Traction Control Systems

Anti-Lock Control

DTC Charts

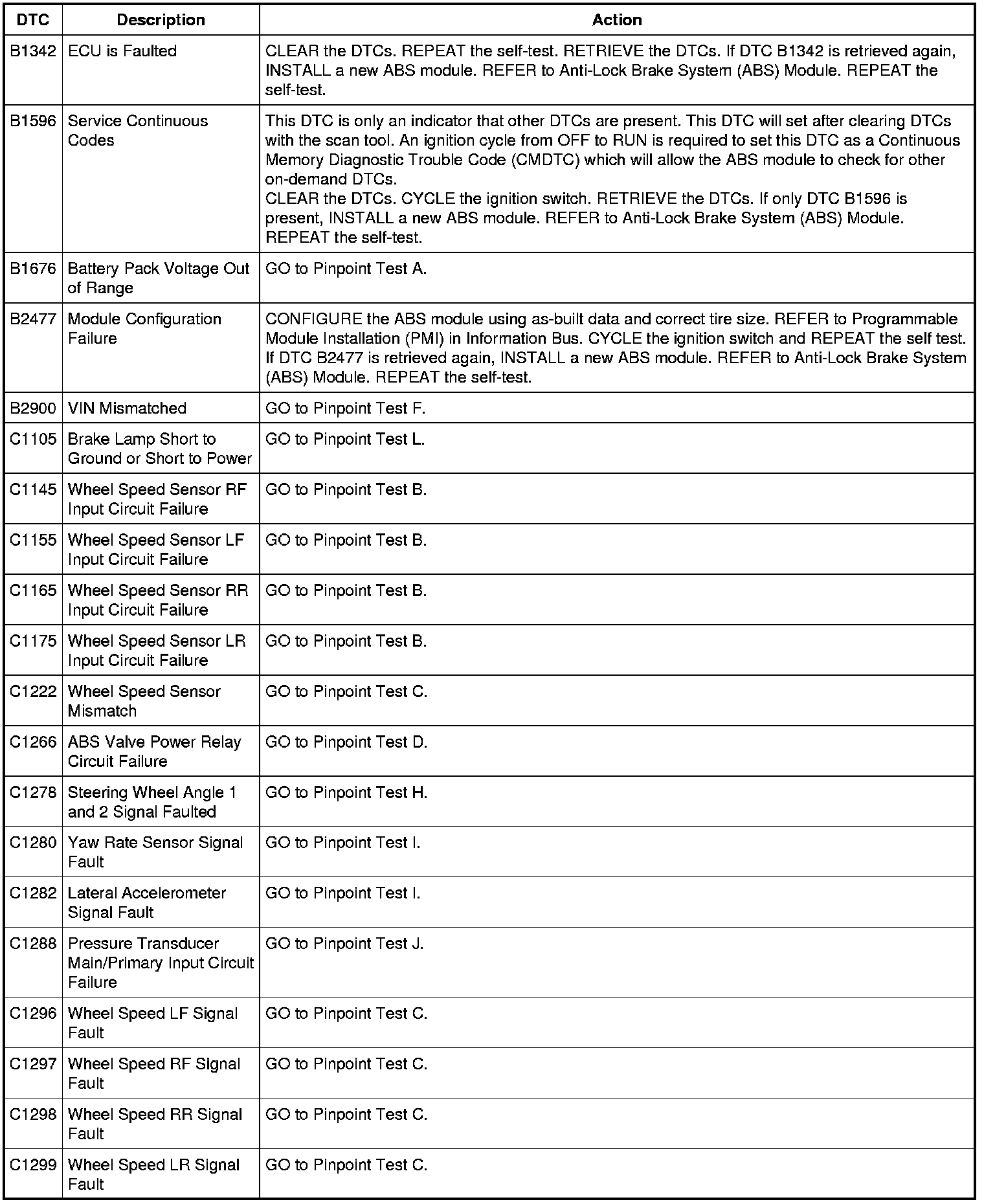

ABS Module DTC Chart

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Antitheft and Alarm Systems to review the procedures for achieving the various ignition states (ignition in accessory, ignition on, ignition start, ignition off) on vehicles with this feature.
