Instrument Panel Dimmer Switch: Notes

NOTE: Navigator shown, Expedition similar.

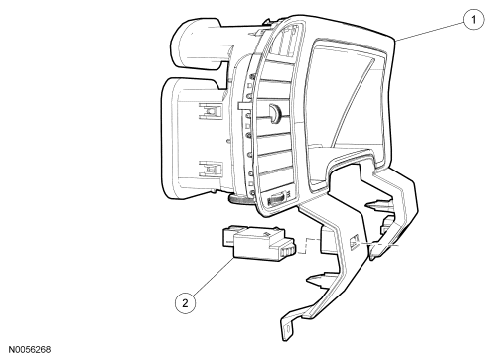

Fig 1: Identifying Instrument Panel Dimmer Switch And Instrument Panel Finish Switch
G06133400Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 011201 Instrument panel finish panel
2 11691 Instrument panel dimmer switch
