Instrument Cluster (IC): Notes
Expedition

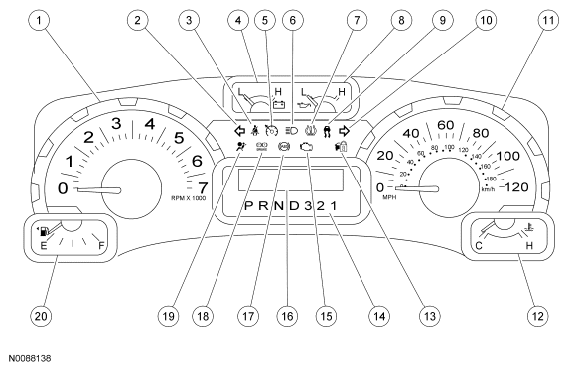

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tachometer |
| 2 | - | LH turn indicator |
| 3 | - | Safety belt warning indicator |
| 4 | - | Voltmeter |
| 5 | - | Speed control indicator |
| 6 | - | High beam indicator |
| 7 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 8 | - | Oil pressure gauge |
| 9 | - | Traction assist indicator |
| 10 | - | RH turn indicator |
| 11 | - | Speedometer |
| 12 | - | Temperature gauge |
| 13 | - | Anti-theft indicator |
| 14 | - | PRNDL indicator |
| 15 | - | Malfunction Indicator Lamp (MIL) |
| 16 | - | Message center |
| 17 | - | ABS warning indicator |
| 18 | - | Brake warning indicator |
| 19 | - | Air bag warning indicator |
| 20 | - | Fuel gauge |
Navigator

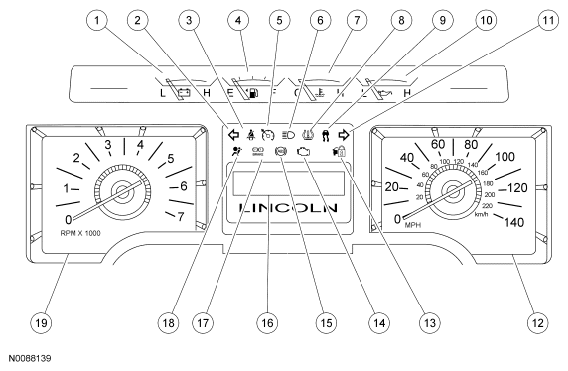

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Voltmeter |
| 2 | - | LH turn indicator |
| 3 | - | Safety belt warning indicator |
| 4 | - | Fuel gauge |
| 5 | - | Speed control indicator |
| 6 | - | High beam indicator |
| 7 | - | Temperature gauge |
| 8 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 9 | - | Traction assist indicator |
| 10 | - | Oil pressure gauge |
| 11 | - | RH turn indicator |
| 12 | - | Speedometer |
| 13 | - | Anti-theft indicator |
| 14 | - | Malfunction Indicator Lamp (MIL) |
| 15 | - | ABS warning indicator |
| 16 | - | Message center |
| 17 | - | Brake warning indicator |
| 18 | - | Air bag warning indicator |
| 19 | - | Tachometer |
The Instrument Cluster (IC) contains gauges, informational indicators, warning indicators and message center indicators that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle.
The IC uses a 2-line display for display of basic informational items such as the odometer and trip odometer and for the message center display information.
All indicator lamps and warning indicator lamps are LEDs, which are not replaceable.
