Evaporative Emission Canister Purge Valve: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

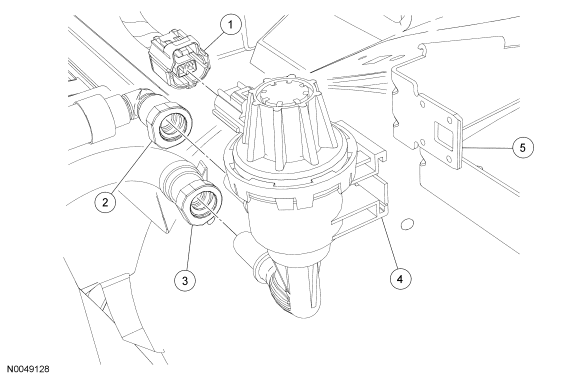

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Evaporative emission (EVAP) canister purge valve electrical connector |
| 2 | - | Intake manifold vapor tube-to-EVAP canister purge valve quick connect coupling (part of 9G297) |
| 3 | - | Front fuel tank vapor tube-to-EVAP canister purge valve quick connect coupling (part of 9G271) |
| 4 | 9C915 | EVAP canister purge valve |
| 5 | 9C915 | EVAP canister purge valve bracket |
