Safety Belt Retractor - Front, 4-Door, SuperCab: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

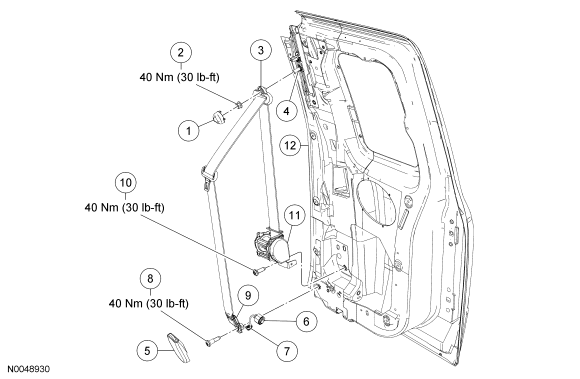

NOTE:
Passenger side shown, driver side similar.
NOTE:
Rear door interior trim panel removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 602B90 | D-ring nut cover |
| 2 | N806773 | D-ring nut |
| 3 | - | D-ring (part of 611B08) |
| 4 | 602B82 | Safety belt height adjuster |
| 5 | - | Safety belt retractor anchor bolt cover (part of 611B08) |
| 6 | - | Electrical connector (part of 611B08) |
| 7 | - | Pin-type retainer |
| 8 | - | Safety belt retractor anchor bolt (part of 611B08) |
| 9 | - | Safety belt retractor anchor (part of 611B08) |
| 10 | - | Safety belt retractor bolt (part of 611B08) |
| 11 | 611B08 | Safety belt retractor |
| 12 | - | Rear passenger door |
