Door Speaker: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

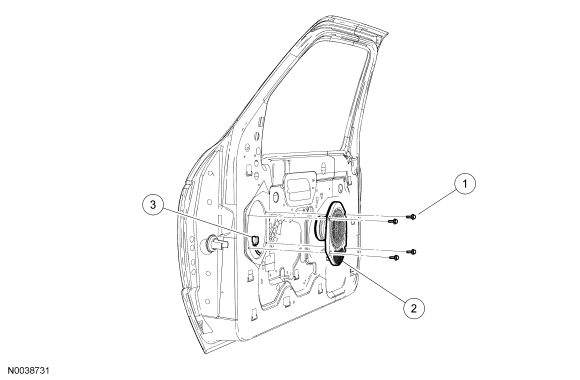

RH front shown, others similar.
NOTE:
The Audiophile system uses 2-voice (speaker with tweeter) speakers that are not interchangeable with any other audio system.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Door speaker screws (4 (required) |
| 2 | 18808 | Door speaker |
| 3 | - | Door speaker electrical connector (part of 14630/14631 [LH/RH]) |
