Without center-facing rear seat

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the C-pillar trim panel floor screws.
    Fig 1: Locating C-Pillar Trim Panel Floor Screws
    GF0008481Courtesy of FORD MOTOR CO.
  2. Open the storage compartment.

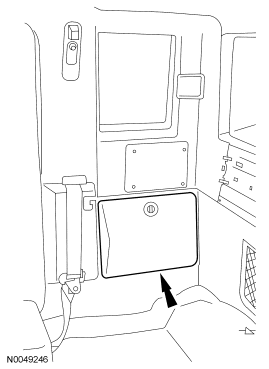

    Fig 2: Locating Storage Compartment
    GF0008482Courtesy of FORD MOTOR CO.
