Remove the door scuff plate trim panel.
Remove the A-pillar trim panel. For additional information, refer to A-Pillar Trim Panel in this article.
Remove the cab rear trim panel.

NOTE: If the safety belt guide cover is damaged or if it does not remain closed, install a new cover.

Fig 1: Locating Front Belt Guide Cover

Courtesy of FORD MOTOR CO.

Remove the front belt guide cover.
- Release the retaining tabs and remove the cover.
Remove the bolt and safety belt guide.

Fig 2: Locating Safety Belt Guide Bolt
Courtesy of FORD MOTOR CO.
- Use the Safety Belt Bolt Bit to remove the bolt.
  - To install, tighten to 40 N.m (30 lb-ft).
- Remove the safety belt guide.
Remove the safety belt anchor bolt.

Fig 3: Locating Safety Belt Anchor Bolt
Courtesy of FORD MOTOR CO.
- Use the Safety Belt Bolt Bit to remove the bolt.
  - To install, tighten to 40 N.m (30 lb-ft).

Remove the C-pillar trim panel pin-type retainers.

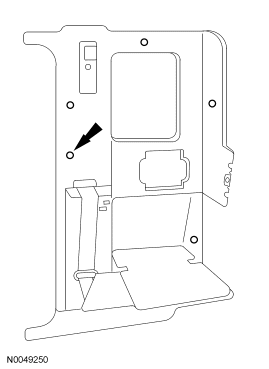

Fig 1: Locating C-Pillar Trim Panel Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Disconnect the radio speaker electrical connector.
Remove the C-pillar trim panel.
- Feed the safety belt webbing through the quarter trim panel.
To install, reverse the removal procedure.
