Removal And Installation
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

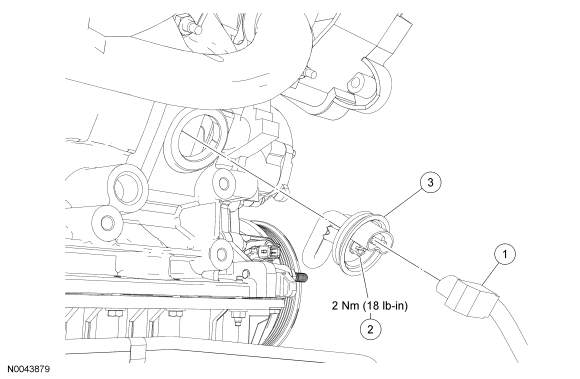

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A199 | Block heater electrical connector (part of 6B018) |
| 2 | - | Block heater screw (part of 6A051) |
| 3 | 6A051 | Block heater |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING article.
- Drain the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding - 2.3L or Cooling System Draining, Filling and Bleeding - 3.0L, 4.0L in this article.
- Disconnect the block heater electrical connector.
- Loosen the block heater screw and twist and slide the block heater to release the retainer clip. Discard the retainer clip and remove the block heater.
- To install, reverse the removal procedure.
NOTE:
Do not loosen the screw more than necessary for removal.
