Pinpoint Test A: The Wipers Are Inoperative

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. A1 CHECK CIRCUITS 65 (DG) AND 1002 (BK/PK) FOR VOLTAGE
    • Key in OFF position.
    • Disconnect: Windshield Wiper Motor C125.
    • Key in ON position.
    • Measure the voltage between windshield wiper C125-5, circuit 65 (DG), harness side and ground; and between windshield wiper motor C125-8, circuit 1002 (BK/PK), harness side and ground.
      Fig 1: Checking Circuits 65 (DG) And 1002 (BK/PK) For Voltage
      G04646491Courtesy of FORD MOTOR CO.
    • Are the voltages greater than 10 volts?

    Yes  : Go to A2.

    No  : VERIFY central junction box (CJB) fuse 33 (15A) and battery junction box (BJB) fuse 1 (30A) are OK. If OK, REPAIR the circuit(s) in question. TEST the system for normal operation.

  2. A2 CHECK CIRCUITS 57 (BK) AND 676 (PK/OG) FOR OPENS
    • Key in OFF position.
    • Measure the resistance between windshield wiper C125-6, circuit 57 (BK), harness side and ground; and between windshield wiper motor C125-3, circuit 676 (PK/OG), harness side and ground.
      Fig 2: Checking Circuits 57 (BK) And 676 (PK/OG) For Opens
      G04646492Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?

    Yes  : Go to A3.

    No  : REPAIR the circuit(s) in question. TEST the system for normal operation.

  3. A3 CHECK THE MULTI-FUNCTION SWITCH
    • Disconnect: Multi-function Switch C202b.
    • Carry out the multi-function switch component test.
    • Did the multi-function switch pass the component test?

    Yes  : Go to A4.

    No  : INSTALL a new multi-function switch. REFER to STEERING COLUMN SWITCHES .

  4. A4 CHECK CIRCUIT 57 (BK) FOR AN OPEN
    • Measure the resistance between C202b-6, circuit 57 (BK), harness side and ground.
      Fig 3: Checking Circuit 57 (BK) For Open
      G04646493Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes  : Go to A5.

    No  : REPAIR the circuit. TEST the system for normal operation.

  5. A5 CHECK CIRCUITS 56 (DB/OG), 58 (WH), 61 (YE/RD) AND 63 (RD) FOR OPENS
    • Using the following table, measure the resistance between multi-function switch C202b harness side and windshield wiper motor C125 harness side:
      WINDSHIELD WIPER MOTOR CHART

      Multi-function Switch C202b Windshield Wiper Motor C125
      Pin 2, circuit 56 (DB/OG) Pin 10, circuit 56 (DB/OG)
      Pin 3, circuit 58 (WH) Pin 11, circuit 58 (WH)
      Pin 4, circuit 61 (YE/RD) Pin 1, circuit 61 (YE/RD)
      Pin 1, circuit 63 (RD) Pin 9, circuit 63 (RD)

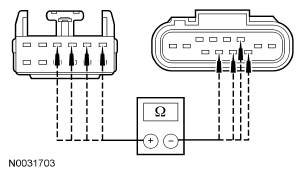

      Fig 4: Checking Circuits 56 (DB/OG), 58 (WH), 61 (YE/RD) And 63 (RD) For Opens
      G04646494Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes  : Go to A6.

    No  : REPAIR the circuit(s) in question. TEST the system for normal operation.

  6. A6 CHECK FOR CORRECT WIPER MOTOR OPERATION

Yes  : INSTALL a new windshield wiper motor. REFER to WIPER MOTOR  in this section.

No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. TEST the system for normal operation.
