Pinpoint Test E: The Chime Sounds When The Driver Door Is Ajar (No Key In Ignition And Headlamps Off)

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.
  1. E1 CHECK THE PARKING LAMPS OPERATION
    • Place the headlamp switch in the headlamps or parking lamps on position and observe the parking lamps.
    • Do the parking lamps operate correctly?

    Yes  : GO to E2.

    No  : REFER to EXTERIOR LIGHTING to continue diagnosis of the parking lamps.

  2. E2 CHECK CIRCUIT 158 (BK/PK) FOR VOLTAGE
    • Disconnect: LCM C2145a.
    • Remove the key from the ignition lock cylinder.
    • Measure the voltage between the LCM C2145a-10, circuit 158 (BK/PK), harness side and ground.

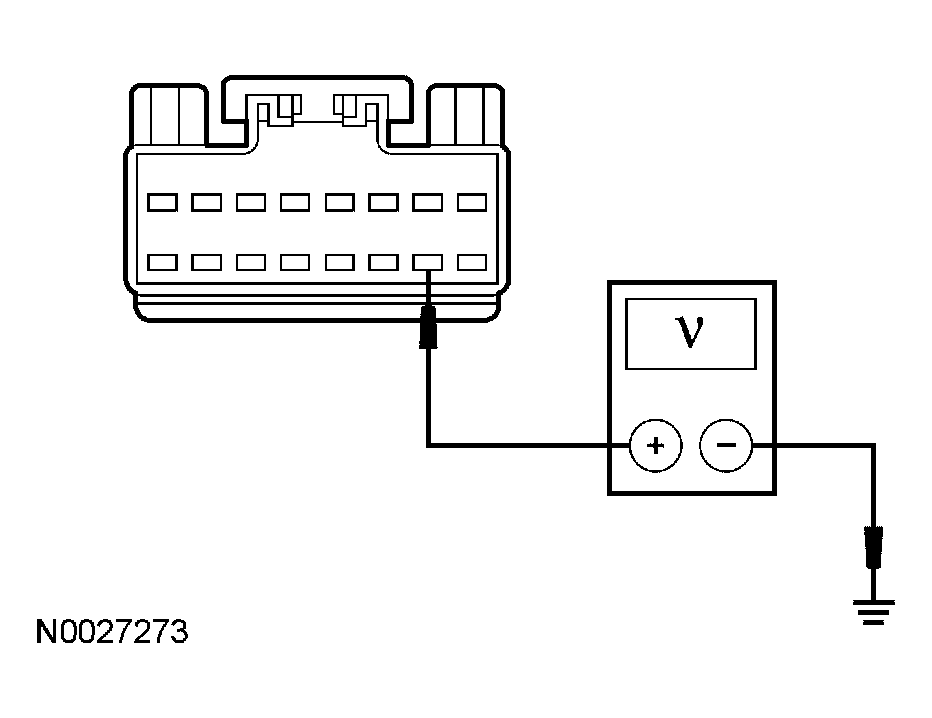

      Fig 1: Measuring Voltage Between LCM C2145A-10, Circuit 158 (BK/PK), Harness Side And Ground
      G04585384Courtesy of FORD MOTOR CO.
    • Is any voltage present?

    Yes  : GO to E3.

    No  : GO to  E4.

  3. E3 CHECK THE IGNITION SWITCH FOR CORRECT OPERATION
    • Disconnect: Ignition Switch C250.
    • Carry out the ignition switch component test. Refer to COMPONENT TESTING .
    • Does the ignition switch pass the component test?

    Yes  : REPAIR circuit 158 (BK/PK). TEST the system for normal operation.

    No  : INSTALL a new ignition switch. REFER to STEERING COLUMN SWITCHES . TEST the system for normal operation.

  4. E4 CHECK FOR CORRECT LCM OPERATION
    • Disconnect all LCM connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all LCM connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?

    Yes  : INSTALL a new LCM. REFER to MULTIFUNCTION ELECTRONIC MODULES . TEST the system for normal operation.

    No  : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
