Pinpoint Test E: The Roof Opening Panel Does Not Open Or Close - Sliding Glass Panel Or Shades Inoperative

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use the correct probe adapter(s) from the Flex Probe Kit when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

NOTE: Both the power sliding glass motor and the power shade motor must be the same build level. For information on the build level of the motor, refer to the REMOVAL AND INSTALLATION of that motor.

NOTE: The jumper wiring harness is different on the older level (black and silver) and the newer level (blue and white) motors. They are not interchangeable. Make sure to match the jumper wiring harness with the correct level of motor.

E1 CHECK THE POWER WINDOWS
- Ignition ON.
- Attempt to operate the power windows.
- Do the power windows operate?
- Yes: GO to E2 .
- No: REFER to GLASS, FRAMES AND MECHANISMS to diagnose the inoperative power windows (accessory delay relay circuit).
E2 CHECK THE ROOF OPENING PANEL MOTOR FOR INITIALIZATION
- Attempt to carry out the roof opening panel motor initialization procedure. Refer to ROOF OPENING PANEL MOTOR INITIALIZATION .
- Is the concern still present, or does the roof opening panel motor fail to initialize?
- Yes: GO to E3 .
- No: The system is operating normally at this time. The roof opening panel motor was not initialized.
E3 CHECK THE ROOF OPENING PANEL SWITCH
- Ignition OFF.
- Disconnect: Roof Opening Panel Switch C9001.
- Carry out the roof opening panel switch component test.
  Refer to COMPONENT TESTING for component testing.
- Did the roof opening panel switch pass the component test?
- Yes: GO to E4 .
- No: INSTALL a new roof opening panel switch. REFER to ROOF OPENING PANEL CONTROL SWITCH . TEST the system for normal operation.
E4 CHECK VOLTAGE TO THE ROOF OPENING PANEL MOTOR ASSEMBLY - CIRCUITS CBP41 (BU) AND SBB18 (YE/RD)
- Disconnect: Roof Opening Panel Motor Assembly C920.
- Ignition ON.
- Measure the voltage between roof opening panel motor assembly C920-13, circuit CBP41 (BU), harness side and ground; and between C920-1, circuit SBB18 (YE/RD), harness side and ground.

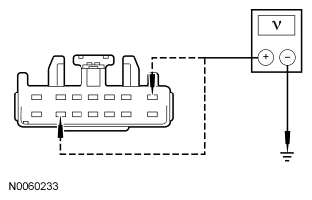

  Fig 1: Measuring Voltage Between Roof Opening Panel Motor Assembly C920-13, Circuit CBP41 (BU), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Are the voltages greater than 10 volts?
- Yes: GO to E5 .
- No: VERIFY Smart Junction Box (SJB) fuse 41 (15A) and Battery Junction Box (BJB) fuse 18 (20A) are OK. If OK, REPAIR the circuit. TEST the system for normal operation.
  If not OK, REFER to the SYSTEM WIRING DIAGRAMS for Edge or SYSTEM WIRING DIAGRAMS for MKX to identify the possible causes of the circuit short. REPAIR the circuit. TEST the system for normal operation.
E5 CHECK THE ROOF OPENING PANEL MOTOR ASSEMBLY GROUND - CIRCUIT GD133 (BK)
- Ignition OFF.
- Measure the resistance between roof opening panel motor assembly C920-8, circuit GD133 (BK), harness side and ground.

  Fig 2: Measuring Resistance Between Roof Opening Panel Motor Assembly C920-8, Circuit GD133 (BK), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
- Yes: GO to E6 .
- No: REPAIR the circuit. TEST the system for normal operation.
E6 CHECK THE ROOF OPENING PANEL SWITCH GROUND - CIRCUIT GD133 (BK) FOR AN OPEN
- Measure the resistance between roof opening panel switch C9001-2, circuit GD133 (BK), harness side and ground.

  Fig 3: Measuring Resistance Between Roof Opening Panel Switch C9001-2, Circuit GD133 (BK), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
- Yes: GO to E7 .
- No: REPAIR the circuit. TEST the system for normal operation.

E7 CHECK CIRCUITS CPR31 (VT/BN), CPR38 (WH/BU) AND CPR40 (YE/OG) FOR A SHORT TO GROUND

Using the following table, measure the resistance between roof opening panel motor assembly C920, harness side and ground:

ROOF OPENING PANEL MOTOR ASSEMBLY C920 REFERENCE CHART

Roof Opening Panel Motor Assembly C920	Ground
C920-2, circuit CPR31 (VT/BN)	Ground
C920-6, circuit CPR38 (WH/BU)	Ground
C920-4, circuit CPR40 (YE/OG)	Ground

Fig 4: Measuring Resistance Between Roof Opening Panel Motor Assembly C920, Harness Side And Ground

Courtesy of FORD MOTOR CO.

Are the resistances greater than 10,000 ohms?

Yes: GO to E8 .
No: REPAIR the circuit(s) in question. TEST the system for normal operation.

E8 CHECK CIRCUITS CPR31 (VT/BN), CPR38 (WH/BU) AND CPR40 (YE/OG) FOR AN OPEN

Measure the resistance between roof opening panel switch C9001, harness side and roof opening panel motor assembly C920, harness side using the following table:

ROOF OPENING PANEL MOTOR ASSEMBLY REFERENCE CHART

Roof Opening Panel Switch	Circuit	Roof Opening Panel Motor Assembly
C9001-4	CPR31 (VT/BN)	C920-2
C9001-6	CPR38 (WH/BU)	C920-6
C9001-3	CPR40 (YE/OG)	C920-4

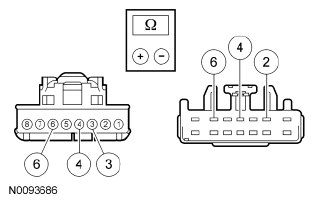

Fig 5: Measuring Resistance Between Roof Opening Panel Switch C9001 And Roof Opening Panel Motor Assembly C920

Courtesy of FORD MOTOR CO.

Are the resistances less than 5 ohms?

Yes: GO to E9 .
No: REPAIR the circuit(s) in question. TEST the system for normal operation.

E9 CHECK THE ROOF OPENING PANEL MOTOR WIRING HARNESS

Using the following table, check the roof opening panel motor wiring harness for loose pins, an open or a short between roof opening panel motor assembly C920 component side and the roof opening panel motor wiring harness socket:

ROOF OPENING PANEL MOTOR ASSEMBLY C920 REFERENCE CHART

Roof Opening Panel Motor Assembly C920	Roof Opening Panel Motor Wiring Harness Socket
C920-1, circuit SBB18	Roof opening panel motor wiring harness socket circuit SBB18
C920-13, circuit CBP41	Roof opening panel motor wiring harness socket circuit CBP41
C920-8, circuit GD133	Roof opening panel motor wiring harness socket circuit GD133
C920-2, circuit CPR31	Roof opening panel motor wiring harness socket circuit CPR31
C920-6, circuit CPR38	Roof opening panel motor wiring harness socket circuit CPR38
C920-4, circuit CPR40	Roof opening panel motor wiring harness socket circuit CPR40

Is the roof opening panel motor wiring harness OK?

Yes: GO to E10 .
No: INSTALL a new roof opening panel motor wiring harness. REFER to ROOF OPENING PANEL MOTOR WIRING HARNESS . INITIALIZE the roof opening panel motor. REFER to ROOF OPENING PANEL MOTOR INITIALIZATION . TEST the system for normal operation.

E10 CHECK THE ROOF OPENING PANEL MOTOR ASSEMBLY FOR CORRECT OPERATION
- Disconnect all roof opening panel motor connectors (sliding glass motor and shade motor).
- Check for:
  - corrosion.
  - bent or pushed-out pins.
- Connect all roof opening panel motor connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
- Yes: INSTALL a new roof opening sliding glass panel motor. REFER to ROOF OPENING PANEL MOTOR - SLIDING FRONT PANEL . INITIALIZE the roof opening panel motor. REFER to ROOF OPENING PANEL MOTOR INITIALIZATION . TEST the system for normal operation. If the concern is still present and both motors and harness were not replaced during the Roof Opening Panel Motor - Sliding Front Panel procedure, INSTALL a new roof opening panel shade motor. REFER to ROOF OPENING PANEL MOTOR - SHADE . INITIALIZE the roof opening panel motor. REFER to ROOF OPENING PANEL MOTOR INITIALIZATION . TEST the system for normal operation.
- No: The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. TEST the system for normal operation.
