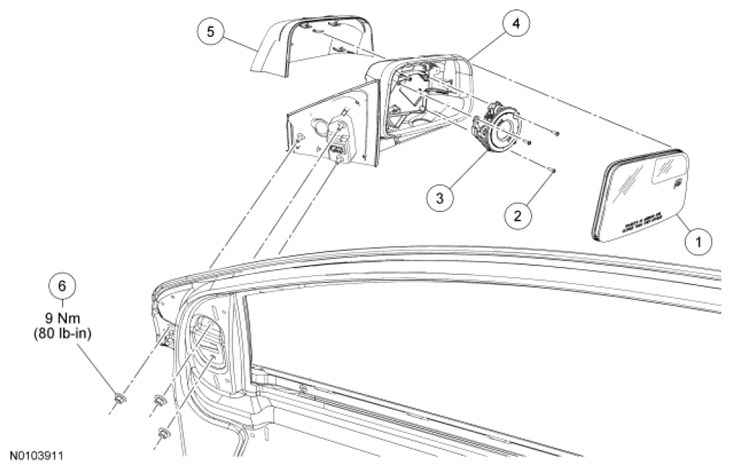

Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 17K707 | Exterior mirror glass |
| 2 | - | Exterior mirror motor screw (part of 17D696) (3 required) |
| 3 | 17D696 | Exterior mirror motor |
| 4 | 17682 RH/17683 LH | Exterior mirror housing |
| 5 | 17D743 LH/17D742 RH | Exterior mirror cover |
| 6 | N621906 | Exterior mirror nut (3 required) |
- For additional information, refer to the appropriate procedure(s).
