Exterior Mirror Cover

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exterior mirror glass. For additional information, refer to EXTERIOR MIRROR GLASS .
  2. Depress the 4 tabs and remove the exterior mirror cover.

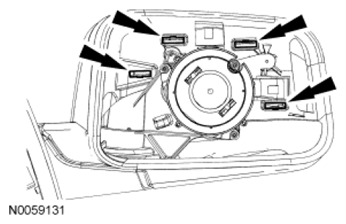

    Fig 1: Locating Exterior Mirror Cover Tabs
    G06505951Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
