Interior Lamp: Rear

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

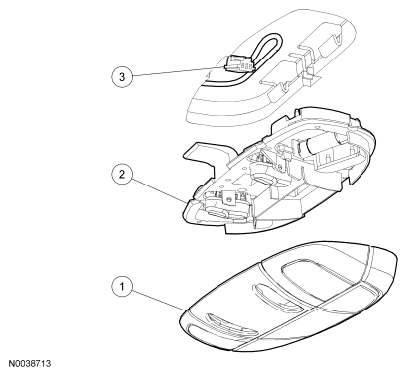

Fig 1: Identifying Rear Interior Lamp Components
G06133951Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 13783 Interior lamp lens
2 13776 Interior lamp
3 - Interior lamp electrical connector (part of 14334)
