Transmission Fluid Cooler
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

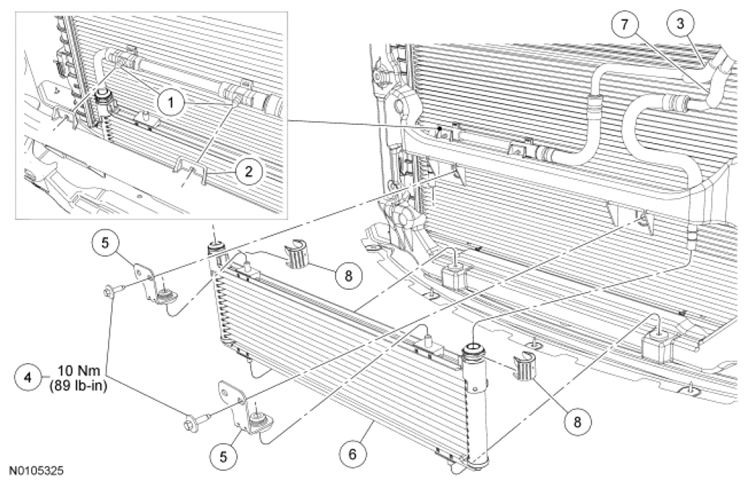

DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Transmission fluid cooler tube fasteners |
| 2 | - | Radiator support |
| 3 | 7C410 | Transmission fluid cooler inlet tube |
| 4 | - | Transmission fluid cooler support bracket bolts |
| 5 | - | Transmission fluid cooler support brackets |
| 6 | 7A095 | Transmission fluid cooler |
| 7 | 7B028 | Transmission fluid cooler return tube |
| 8 | 7Z465 | Transmission fluid cooler tube secondary latches |
