Transmission Fluid Cooler Tubes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

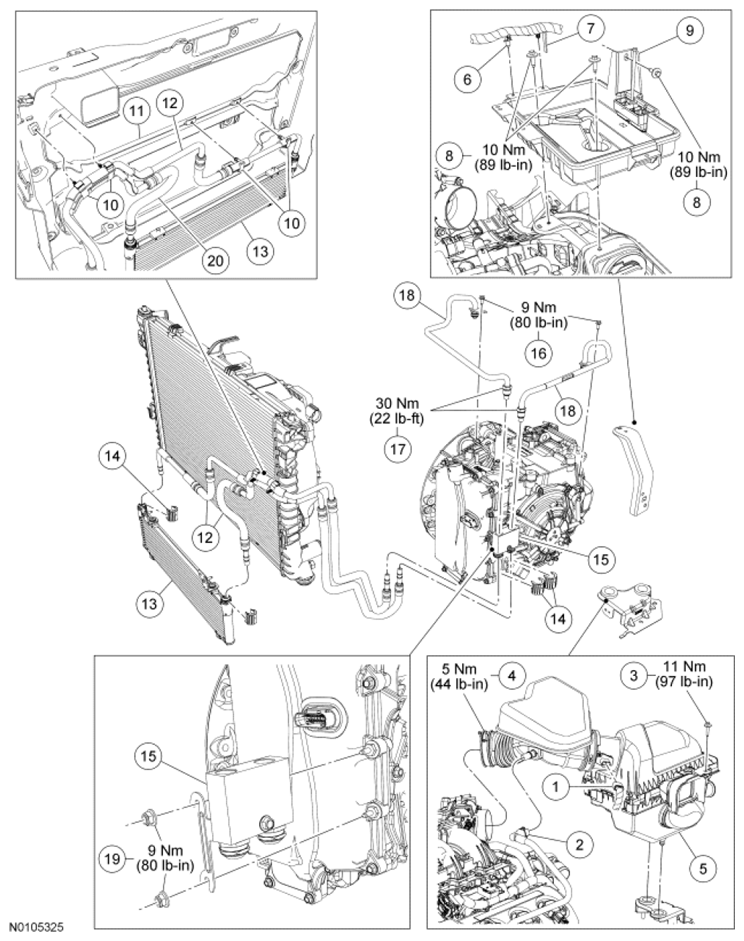

DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electrical connector - Mass Air Flow (MAF) sensor |
| 2 | - | Tube assembly - crankcase vent |
| 3 | - | Bolt - Air Cleaner (ACL) bracket |
| 4 | - | Clamp - ACL outlet pipe |
| 5 | - | ACL assembly |
| 6 | - | Fastener - wiring harness |
| 7 | - | Fastener - wiring harness |
| 8 | - | Bolts - battery tray |
| 9 | - | Battery tray |
| 10 | - | Transmission fluid cooler tube fasteners |
| 11 | - | Radiator support |
| 12 | 7C410 | Transmission fluid cooler inlet tube |
| 13 | 7A095 | Transmission fluid cooler |
| 14 | 7Z465 | Transmission fluid cooler tube secondary latches |
| 15 | 7H322 | Transmission fluid thermal bypass valve (part of 7R081) |
| 16 | - | Transmission fluid cooler tube bolts |
| 17 | - | Transmission fluid cooler tube nuts (part of 7R081) |
| 18 | 7R081 | Transmission fluid cooler tube assembly |
| 19 | - | Transmission fluid thermal bypass valve nuts |
| 20 | 7B028 | Transmission fluid cooler return tube |
