Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
    2. NOTE: Front door shown, rear door similar.
    Fig 1: Locating Interior Door Handle
    G06506052Courtesy of FORD MOTOR CO.
  2. Disconnect the interior door handle from the door window regulator and motor assembly.
    3. NOTE: Front door shown, rear door similar.
  3. Remove the interior door handle.
    • Disconnect the interior door handle actuating cable from the interior door handle.
    • Remove the interior door handle.

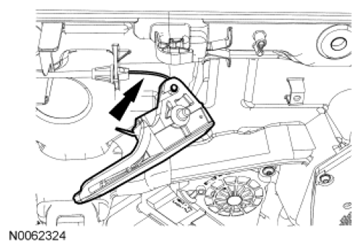

      Fig 2: Locating Interior Door Handle Cable
      G06506053Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
