Exterior Door Handle: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

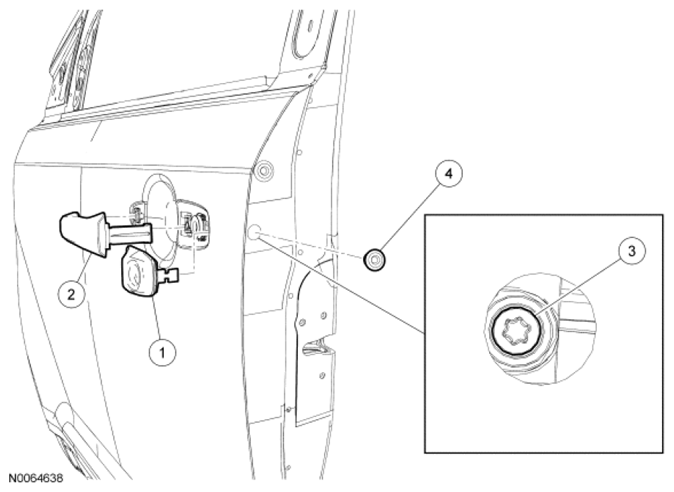

Fig 1: Identifying Exterior Door Handle Components
G06506054Courtesy of FORD MOTOR CO.
DESCRIPTION CHART

Item Part Number Description
1 78218A14/78218B08 Exterior door handle bezel (LH/RH)
2 7822404 Exterior door handle strap
3 N807169 Exterior door handle reinforcement screw
4 W651011 Plug
