MKX Floor Console

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

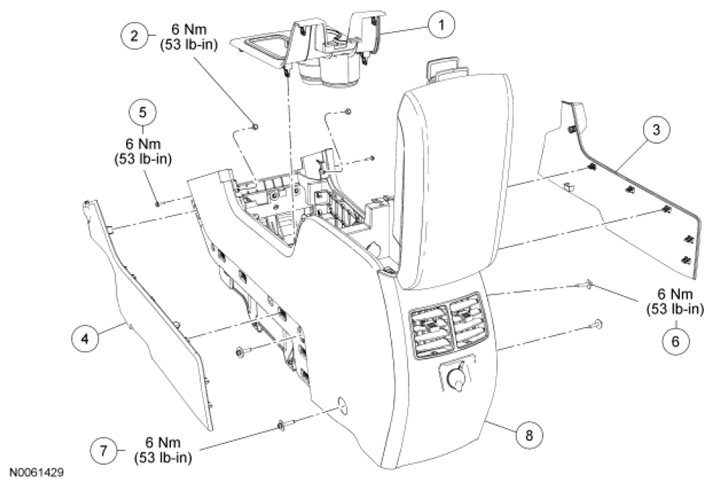

Fig 1: MKX Floor Console Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	045A76	Floor console finish panel
2	W706862	Floor console-to-instrument panel bolt (2 required)
3	04608	Floor console RH side panel
4	04609	Floor console LH side panel
5	W707628	Floor console front side bolt (2 required)
6	W706862	Floor console center bolt (2 required)
7	W706862	Floor console rear bolt (2 required)
8	045A36	Floor console

All vehicles

Position the selector lever to NEUTRAL.

NOTE: The seats must be in the full raised position to access the bolts.

Position the seats forward and remove the 2 floor console rear bolts.
- To install, tighten to 6 Nm (53 lb-in).
Remove the 2 floor console side panels.

NOTE: The seats must be in the full raised position to access the bolts.

Position the seats rearward and remove the 2 floor console side panels and 2 floor console center bolts.
- To install, tighten to 6 Nm (53 lb-in).
Remove the floor console finish panel.
MKX only
Remove the storage bin.
- Remove the 2 scrivets.
- Disconnect the power point electrical connector.
Remove the 2 floor console front side bolts.
- To install, tighten to 6 Nm (53 lb-in).
All vehicles
Remove the 2 floor console-to-instrument panel bolts.
- To install, tighten to 6 Nm (53 lb-in).
Disconnect the floor console electrical connector from the lower right front wiring harness.
Remove the floor console.
To install, reverse the removal procedure.
