Edge Floor Console
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

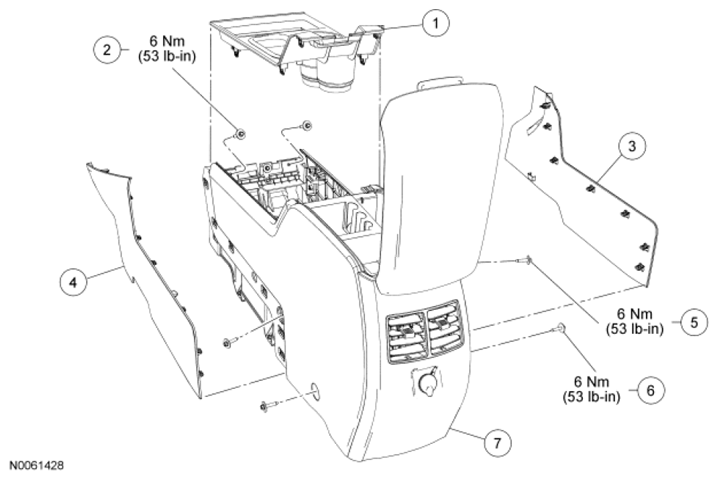

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 045A76 | Floor console finish panel |
| 2 | W706862 | Floor console-to-instrument panel bolt (2 required) |
| 3 | 04608 | Floor console RH side panel |
| 4 | 04609 | Floor console LH side panel |
| 5 | W706862 | Floor console center bolt (2 required) |
| 6 | W706862 | Floor console rear bolt (2 required) |
| 7 | 045A36 | Floor console |
