Pinpoint Test U: The Heated Seat Is Inoperative - Front Passenger Seat Does Heat But The Heated Seat Indicator Does Not Illuminate When Pressed
- U1 CHECK CIRCUITS CHS09 (GY) AND CHS14 (GN) FOR A SHORT TO GROUND
- Ignition OFF.
- Depower the SRS . Refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Disconnect: Passenger Seat Side Air Bag C327.
- Disconnect: HVAC Module C228b.
- Disconnect: Heated Seat Module C329.
- Connect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .

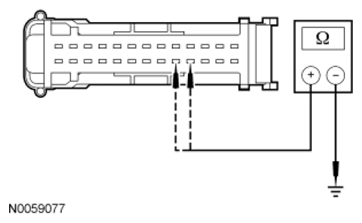

- Measure the resistance between:
- HVAC module C228b-4, circuit CHS09 (GY), harness side and ground.
- HVAC module C228b-5, circuit CHS14 (GN), harness side and ground.
- Are the resistances greater than 10,000 ohms?
WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.- Yes: GO to U2 .
- No:
REPAIR the affected circuit. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C327.
REPOWER the SRS . REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- U2 CHECK CIRCUITS CHS09 (GY) AND CHS14 (GN) FOR AN OPEN
- Measure the resistance between:

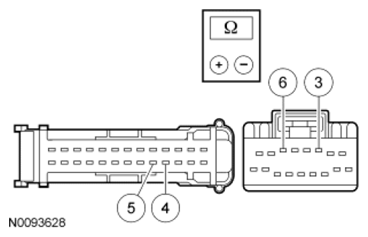

- HVAC module C228b-4, circuit CHS09 (GY), harness side and heated seat module C329-3, circuit CHS09 (GY), harness side.
- HVAC module C228b-5, circuit CHS14 (GN), harness side and heated seat module C329-6, circuit CHS14 (GN), harness side.
- Are the resistances less than 5 ohms?
- Yes: GO to U3 .
- No:
REPAIR the affected circuit. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C327.
REPOWER the SRS . REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Measure the resistance between:
- U3 CHECK THE HEATED SEAT MODULE HI INDICATOR ON THE HVAC MODULE
- Connect: HVAC Module C228b.
- Ignition ON.
- Connect a fused jumper lead between heated seat module C329-6, circuit CHS14 (GN), harness side and C329-1, circuit SBB16 (VT/RD), harness side.
- Does the right passenger heated seat indicator LED illuminate on the HVAC module?
- Yes: GO to U4 .
- No:
INSTALL a new HVAC module. REFER to
CLIMATE CONTROL
. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C327.
REPOWER the SRS . REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- U4 CHECK THE HEATED SEAT MODULE LOW INDICATOR ON THE HVAC MODULE
- Connect a fused jumper lead between passenger heated seat module C329-3, circuit CHS09 (GY), harness side and C329-1, circuit SBB16 (VT/RD), harness side.
- Does the left passenger heated seat indicator LED illuminate on the HVAC module?
- Yes:
INSTALL a new heated seat module. REFER to HEATED SEAT MODULE - FRONT . TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C327.
REPOWER the SRS . REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- No:
INSTALL a new HVAC module. REFER to
CLIMATE CONTROL
. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C327.
REPOWER the SRS . REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
