Pinpoint Test Z: The Trailer Stop/Turn Lamp Is Inoperative

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
  1. Z1 CHECK FOR VOLTAGE TO THE TRAILER TOW CONNECTOR
    • Ignition OFF.
    • For the LH trailer stop/turn lamp, while applying the brake pedal, measure the voltage between the trailer tow C439-2, circuit CAT06 (YE), harness side and ground.
      Fig 1: Measuring Voltage Between Trailer Tow C439-2, Circuit CAT06 (YE) And Ground
      G06099227Courtesy of FORD MOTOR CO.
    • For the RH trailer stop/turn lamp, while applying the brake pedal, measure the voltage between the trailer tow C439-1, circuit CAT09 (GN), harness side and ground.
      Fig 2: Measuring Voltage Between Trailer Tow C439-1, Circuit CAT09 (GN) And Ground
      G06099228Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes:  The vehicle is operating correctly. SEND the trailer to an authorized camper/trailer repair facility.
    • No:  VERIFY the BJB  fuse 24 (15A) (LH stop/turn relay) or fuse 46 (15A) (RH stop/turn relay) is OK. If OK, GO to Z2  . If not OK, REFER to SYSTEM WIRING DIAGRAMS for Edge or SYSTEM WIRING DIAGRAMS for MKX to identify the possible causes of the circuit short.
  2. Z2 CHECK THE TRAILER TOW STOP/TURN RELAY
    • Disconnect: Suspect Trailer Tow Stop/Turn Relay.
    • Substitute a known good relay.
    • For the LH trailer stop/turn lamp, while applying the brake pedal, measure the voltage between the trailer tow C439-2, circuit CAT06 (YE), harness side and ground.
      Fig 3: Measuring Voltage Between Trailer Tow C439-2, Circuit CAT06 (YE) And Ground
      G06099227Courtesy of FORD MOTOR CO.
    • For the RH trailer stop/turn lamp, while applying the brake pedal, measure the voltage between the trailer tow C439-1, circuit CAT09 (GN), harness side and ground.
      Fig 4: Measuring Voltage Between Trailer Tow C439-1, Circuit CAT09 (GN) And Ground
      G06099228Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes:  REMOVE the known good relay. INSTALL a new trailer tow stop/turn relay. TEST the system for normal operation.
    • No:  REMOVE the known good relay. GO to Z3  .
  3. Z3 CHECK FOR VOLTAGE TO THE STOP/TURN LAMP RELAY COIL
    • While applying the brake pedal, measure the voltage between the trailer tow LH stop/turn relay pin 1, circuit CLS18 (GY/BN), BJB  face side and ground; or between the trailer tow RH stop/turn relay pin 2, circuit CLS19 (VT/OG), BJB  face side and ground.

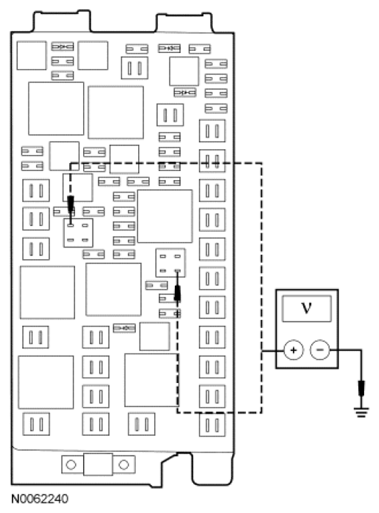

      Fig 5: Measuring Voltage Between Trailer Tow LH Stop/Turn Relay Pin 1, Circuit CLS18 (GY/BN) BJB Face Side And Ground
      G06503816Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes:  GO to Z4  .
    • No:  REPAIR circuit CLS18 (GY/BN) (LH stop/turn) or circuit CLS19 (VT/OG) (RH stop/turn) for an open. TEST the system for normal operation.
  4. Z4 CHECK THE BJB
    • Measure the voltage between the trailer tow LH stop/turn relay pin 3, BJB  face side and ground; or between the trailer tow RH stop/turn relay pin 5, BJB  face side and ground.

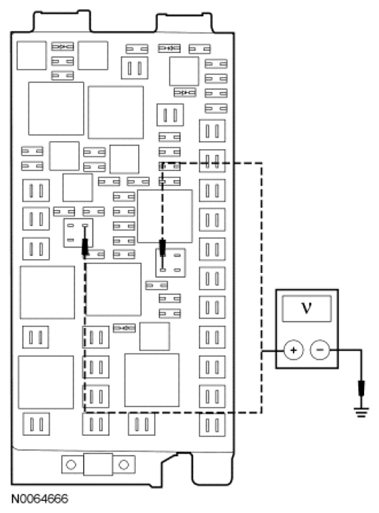

      Fig 6: Measuring Voltage Between Trailer Tow LH Stop/Turn Relay Pin 3 BJB Face Side And Ground
      G06503817Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes:  GO to Z5  .
    • No:  INSTALL a new BJB  . TEST the system for normal operation.
  5. Z5 CHECK FOR VOLTAGE TO THE STOP/TURN LAMP RELAY USING THE RELAY GROUND PIN
    • Measure the voltage between the trailer tow LH stop/turn relay pin 3, BJB  face side and the trailer tow LH stop/turn relay pin 2, circuit GD120 (BK/GN), BJB  face side.

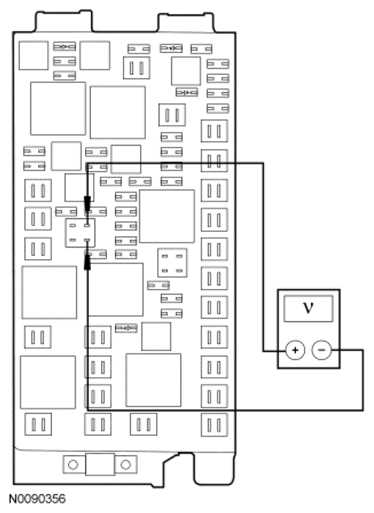

      Fig 7: Measuring Voltage Between Trailer Tow LH Stop/Turn Relay Pin 3 BJB Face Side And Pin 2, Circuit GD120 (BK/GN)
      G06503818Courtesy of FORD MOTOR CO.
    • Measure the voltage between the trailer tow RH stop/turn relay pin 5, BJB  face side and the trailer tow RH stop/turn relay pin 1, circuit GD120 (BK/GN), BJB  face side.

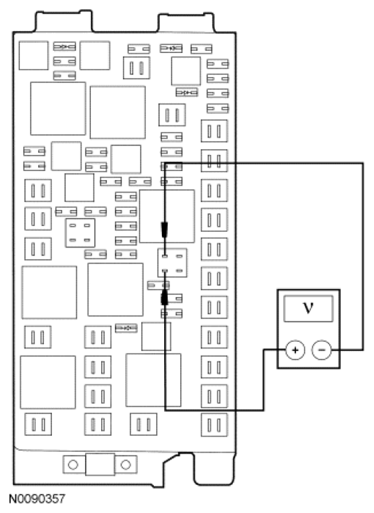

      Fig 8: Measuring Voltage Between Trailer Tow RH Stop/Turn Relay Pin 5, BJB Face Side And Pin 1, Circuit GD120 (BK/GN)
      G06503819Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes:  REPAIR circuit CAT06 (YE) (LH trailer stop/turn) or circuit CAT09 (GN) (RH trailer stop/turn) for an open. TEST the system for normal operation.
    • No:  REPAIR circuit GD120 (BK/GN) for an open. TEST the system for normal operation.
