Door Trim Panel - Rear: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
MKX shown, Edge similar.
NOTE:
RH door shown, LH door similar.

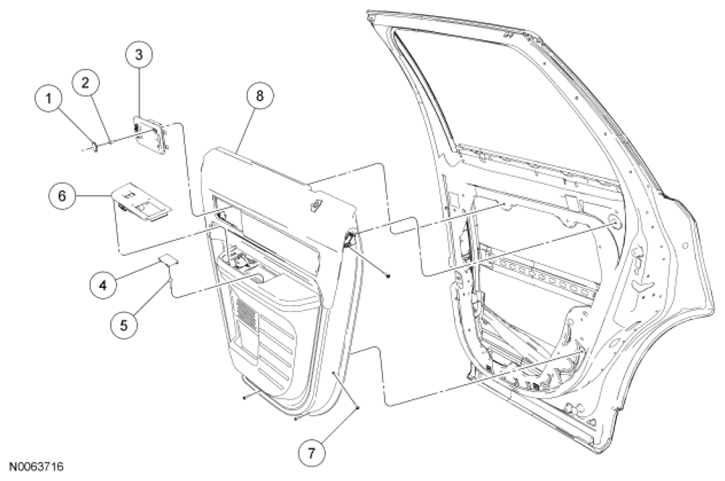

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 226A21 LH/226A20 RH | Rear door handle bezel screw cover |
| 2 | W712934 | Rear door handle bezel screw |
| 3 | 22620 RH/22621 LH | Rear door handle bezel |
| 4 | 22670 | Rear door trim pull handle cup screw cover (MKX only) |
| 5 | W705392-S307 | Rear door trim pull handle cup screw |
| 6 | 14524 RH/14525 LH | Rear door trim window control switch bezel |
| 7 | W708412 | Rear door trim panel screw (6 required) |
| 8 | 27406 RH/27407 LH | Rear door trim panel |
