Door Trim Panel - Front: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
MKX shown, Edge similar.
NOTE:
RH door shown, LH door similar.

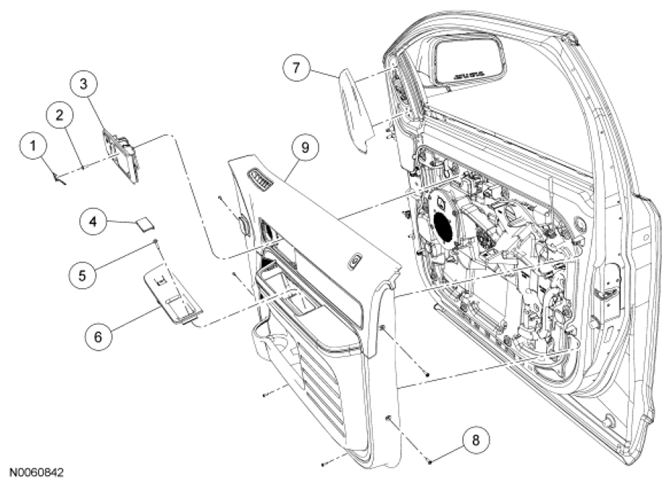

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 22621 LH/22620 RH | Front door handle bezel screw cover |
| 2 | W712934 | Front door handle bezel screw |
| 3 | 22620 RH/22621 LH | Front door handle bezel |
| 4 | 22670 | Front door window control switch bezel screw cover (MKX only) |
| 5 | W705392-S397 | Front door window control switch bezel screw |
| 6 | 14524 RH/14525 LH | Front door window control switch bezel |
| 7 | 17D720 RH/17D721 LH | Front door trim sail panel |
| 8 | W708412 | Front door trim panel screw (6 required) |
| 9 | 23942 RH/23943 LH | Front door trim panel |
