Blower Motor Resistor

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

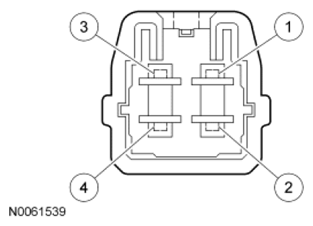

Fig 1: Identifying Blower Motor Resistor Pins

Courtesy of FORD MOTOR CO.

RESISTANCE REFERENCE

Blower Motor Resistor Pins	Approx. Resistance
4 and 3	0.25-0.29 ohm
4 and 2	0.88-1.02 ohm
4 and 1	2.0-2.30 ohms
