Radiator Grille: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

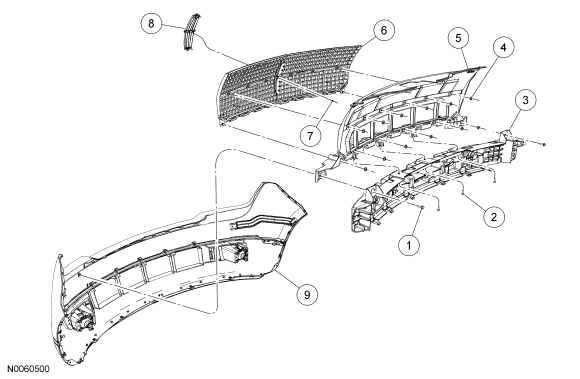

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W506413-S |
Isolator-to-bumper cover bolt (2 required) |
| 2 |
W505003-S |
Isolator-to-radiator grille reinforcement screw (5 required) |
| 3 |
17E898 |
Isolator |
| 4 |
N800488-S |
Radiator grille reinforcement-to-radiator grille nut (11 required) |
| 5 |
8A164 |
Radiator grille reinforcement |
| 6 |
16A912 |
Radiator grille |
| 7 |
N800488-S |
Emblem retainer |
| 8 |
8B262 |
Emblem |
| 9 |
17D957 |
Front bumper cover |

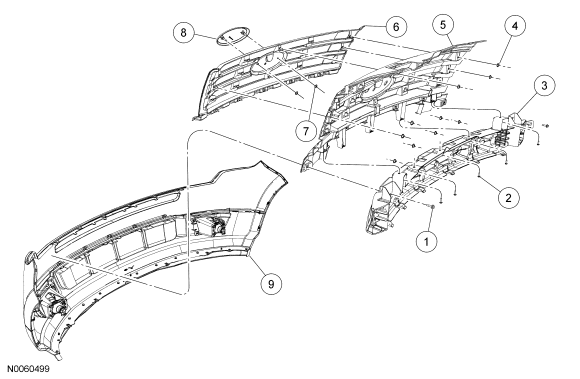

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W506413-S |
Isolator-to-bumper cover bolt (2 required) |
| 2 |
W505003-S |
Isolator-to-radiator grill reinforcement screw (3 required) |
| 3 |
17E898 |
Isolator |
| 4 |
N800488-S |
Radiator grille reinforcement-to-radiator grille nut (12 required) |
| 5 |
8A164 |
Radiator grill reinforcement |
| 6 |
16A912 |
Radiator grille |
| 7 |
- |
Emblem retainer |
| 8 |
8B262 |
Emblem |
| 9 |
17D957 |
Bumper cover |
