Door Speaker: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

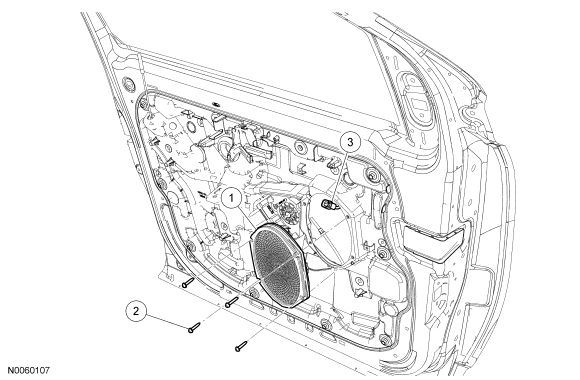

Fig 1: Exploded View Of Front Door Speaker Or Rear Door Speaker

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18808	Door speaker
2	973791	Door speaker screws (4 required)
3	-	Door speaker electrical connector(s) (part of door harness)

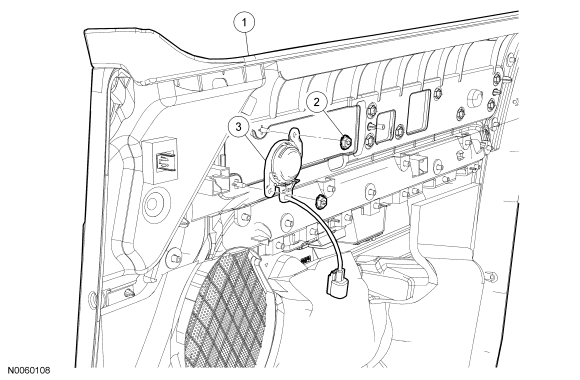

Fig 2: Exploded View Of Front Door Tweeter

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Door trim panel
2	W706675-S	Front door tweeter speaker nuts (2 required)
3	19B170	Front door tweeter speaker
