Exterior Door Handle: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

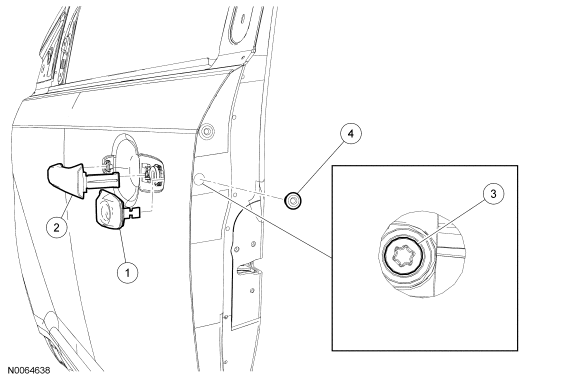

Fig 1: Identifying Exterior Door Handle
GF0031032Courtesy of FORD MOTOR CO.
Item Part Number Description
1 78218A14/ 78218B08 Exterior door handle bezel (LH/RH)
2 7822404 Exterior door handle strap
3 N807169 Exterior door handle reinforcement screw
4 W651011 Plug
