Door Handle Reinforcement: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

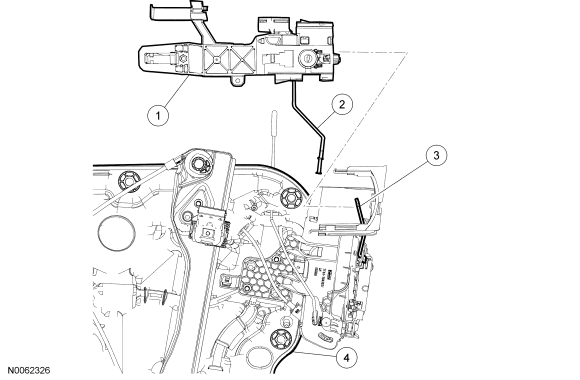

Fig 1: Exploded View Of Exterior Front
GF0031033Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7826684/ 7826685 Exterior front door handle reinforcement (LH/RH)
2 7822152/ 7822153 Exterior front door handle actuating rod (LH/RH)
3 7822135 Front door lock cylinder actuating rod (if equipped)
4 - Front window regulator and motor assembly

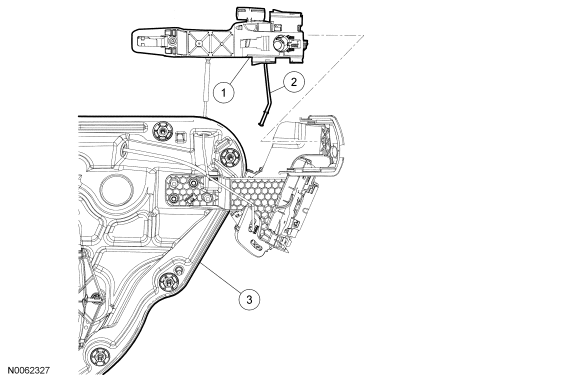

Fig 2: Exploded View Of Exterior Rear
GF0031034Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7826684/ 7826685 Exterior rear door handle reinforcement (LH/RH)
2 7822152/ 7822153 Exterior rear door handle actuating rod (LH/RH)
3 - Rear window regulator and motor assembly
