Removal And Installation

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

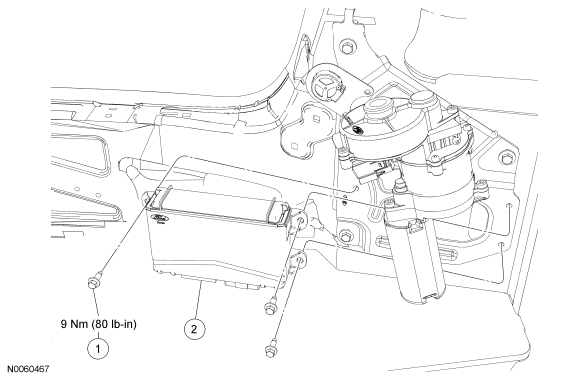

Fig 1: Exploded View Of Liftgate/Trunk Module (LTM) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W506013	Liftgate/trunk module (LTM) retaining bolt (3 required)
2	404D06	LTM

Remove the power liftgate motor assembly. For additional information, refer to Power Liftgate Motor .
Remove the LTM.
- Disconnect the electrical connectors and remove the 3 bolts.
  - To install, tighten to 9 N.m (80 lb-in).

Fig 2: Identifying Electrical Connectors & Bolts

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
- Initialize the power liftgate. For additional information, refer to Power Liftgate Initialization .
