Temperature Blend Door Actuator - RH, Dual-Zone EATC: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

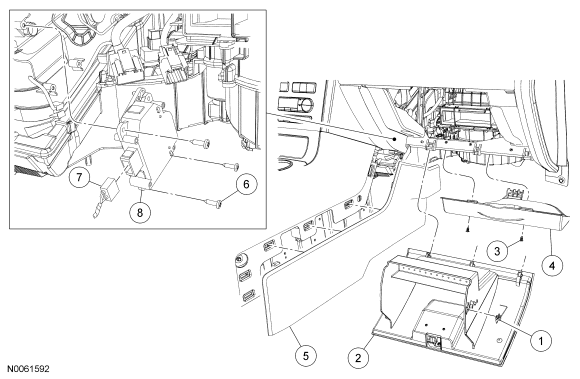

| Item | Part Number | Description |
|---|---|---|
| 1 | 7806200 | Glove compartment damper |
| 2 | 7806024 | Glove compartment |
| 3 | - | RH lower instrument panel insulator pin-type retainer (2 required) |
| 4 | - | RH lower instrument panel insulator |
| 5 | 7804608 | RH lower floor console trim panel |
| 6 | - | RH temperature blend door actuator screw (3 required) |
| 7 | 19C603 | RH temperature blend door actuator electrical connector |
| 8 | 19E616 | RH temperature blend door actuator |
