Temperature Blend Door Actuator - LH: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

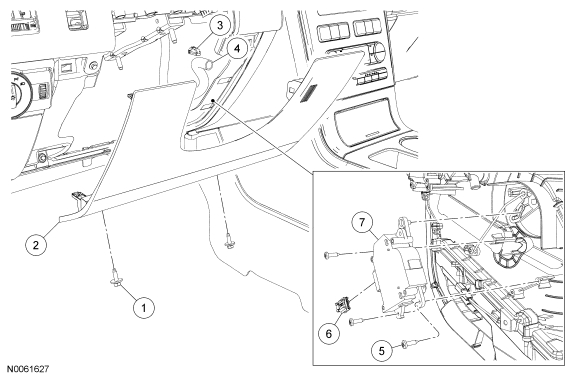

| Item | Part Number | Description |
|---|---|---|
| 1 | W708268 | Lower steering column opening cover bolt (2 required) |
| 2 | 7804459 | Lower steering column opening cover |
| 3 | 14401 | In-vehicle temperature sensor electrical connector |
| 4 | 19C739 | In-vehicle temperature sensor aspirator hose |
| 5 | - | LH temperature blend door actuator screw (3 required) |
| 6 | 19C603 | LH temperature blend door actuator electrical connector |
| 7 | 19E616 | LH temperature blend door actuator |
