Condenser to Evaporator Line: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

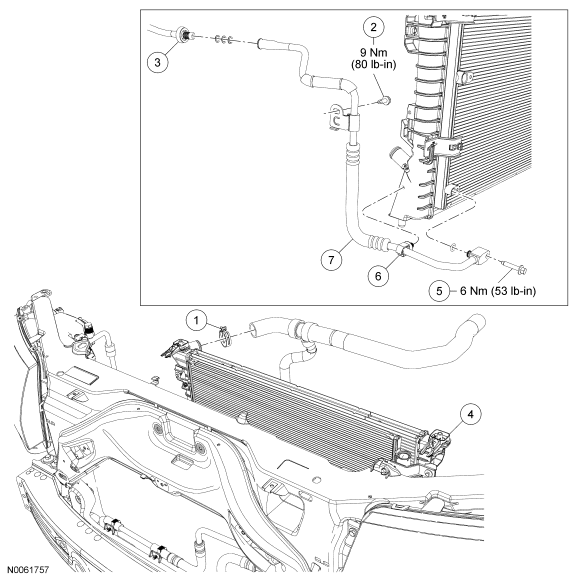

Fig 1: Exploded View Of Condenser To Evaporator Line With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Upper radiator hose clamp
2	W707399	Condenser-to-evaporator line bracket bolt
3	-	Condenser-to-evaporator line spring lock coupling (part of 19835)
4	8A193	Radiator bracket (2 required)
5	W500215	Condenser outlet fitting bolt
6	W704005	Condenser-to-evaporator line radiator clip
7	19835	Condenser side condenser-to-evaporator line

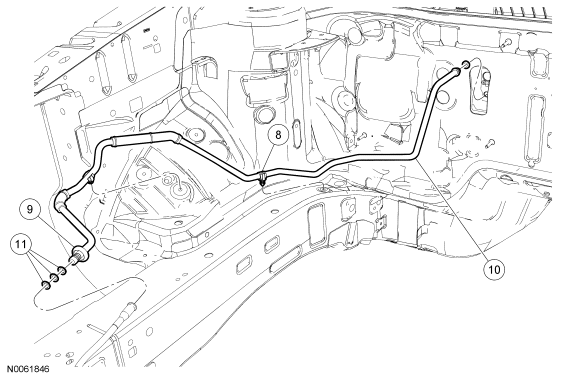

Fig 2: Exploded View Of Condenser To Evaporator Line (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
8	19D721	Condenser-to-evaporator line clip (2 required)
9	-	Condenser-to-evaporator line spring lock coupling (part of 19835)
10	19835	Evaporator side condenser-to-evaporator line
11	19E889	O-ring seal (5 required)
